2*(885-960)/2*(1710-1830)MHz 16.5/17.5dB i 65° Narrowband IoT Base Station Antenna
ODP-0818X17i065D4B
| Electrical Parameter | ||
| Frequency (MHz) | 2*(885-960) | 2*(1710-1830) |
| Gain (dBi) | 16.5 | 17.5 |
| Horizontal Beam width(3dB) | 65±6 | 65±6 |
| Vertical Beam Width(3dB) | ≥8 | ≥7 |
| Electrical Downtilt (°) | 2-12 | 2-12 |
| VSWR | ≤1.5 | ≤1.5 |
| Isolation (dB) | ≥25 | ≥25 |
| Isolation Between Ports (dB) | ≥25 | ≥25 |
| Cross Polarization Ratio (dB) | 0°≥15 ±60°≥8 | 0°≥15 ±60°≥8 |
| Upper Sidelobe Suppression (dB) | ≤-15 | ≤-15 |
| Front to Back Ratio (dB) | ≥25 | ≥25 |
| Polarization | ±45° | ±45° |
| Input Maximum CW Power (W) | ≥80 | ≥80 |
| PIMD 3th (dBm) | ≤-107dBm(@2*43dBm) | |
| PIMD 2th (dBm) | ≤-107dBm(@2*43dBm) | |
| Impedance (Ω) | 50 | |
| Input Connector | 8*7/16DIN female | |
| Other Parameter | |
| Dimensions of Antenna (mm) | 1910×416×164 |
| Dimensions of Package(mm) | 2160×520×286 |
| Weight of Antenna(kg) | 38.8 |

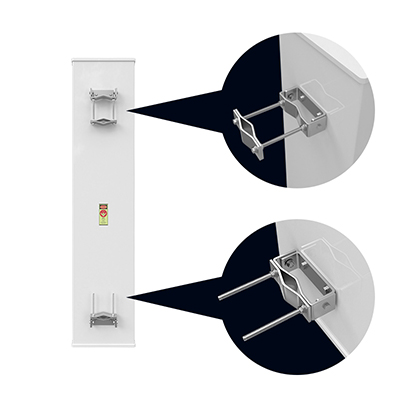

| Weight of Mounting Kits(kg) | 5.4 |
| Install Position Adjustment(°) | 0~18 |
| Temperature(℃) | -40~+60 |
| Radome Material | 玻璃钢(FRP) |
| Diameter of Installation pole(mm) | Φ50~ 80 |
