900/1800/FA /D 4+4+8+8 Narrowband IoT Base Station Antenna
ODP-0827X20i065D8A
| FA&D Electrical Performance Parameter | ||||
| Frequency (MHz) | F(1885~1920MHZ) | A(2010~2025MHZ) | D(2575~2635MHZ) | |
| Vertical plane electric angle range（°） | 2-12 | 2-12 | 2-12 | |
| Electric dip angle accuracy(°) | ±1 | ±1 | ±1 | |
| Calibration port to the coupling degree of each radiation port（dB） | -26±2 | -26±2 | -26±2 | |
| The maximum amplitude deviation from the calibration port to each radiation port（dB） | ≤0.7 | ≤0.7 | ≤0.7 | |
| The maximum phase deviation from the calibration port to each radiation port（°） | ≤5 | ≤5 | ≤5 | |
| Calibration port and radiation port voltage standing wave ratio | ≤1.5 | ≤1.5 | ≤1.5 | |
| Single | Horizontal half-power beam width（°） | 100±15 | 90±15 | 65±15 |
| Unit beam gain（dBi） | ≥13.5 | ≥14.5 | ≥15.5 | |
| Cross polarization ratio（dB，axial direction） | ≥15 | ≥15 | ≥15 | |
| Cross polarization ratio（dB，±60°） | ≥8 | ≥8 | ≥8 | |
| Front-to-Back Ratio(dB) | ≥23 | ≥23 | ≥23 | |
| Broadcast Beam | Horizontal half-power beam width（°） | / | 65±5 | / |
| Broadcast beam gain（dBi） | ≥15 | ≥14.5 | ≥15 | |
| ± 32.5 ° Sector power ratio（%） | 72±7 | / | 72±7 | |
| ± 60 ° Sector power ratio（%） | ≥95 | / | ≥90 | |
| The beam edge power decreases by ± 60 °（dB） | 12±3 | 12±3 | 12±3 | |
| Vertical half power beam width（°） | ≥7 | ≥6.5 | ≥5 | |
| Cross polarization ratio（axial direction）（dB） | ≥18 | ≥18 | / | |
| Cross polarization ratio（dB， ±20°） | ≥20 | / | / | |
| Cross polarization ratio（dB， ±60°范围内） | ≥8 | ≥8 | ≥8 | |
| Front-to-Back Ratio(dB) | ≥25 | ≥25 | ≥25 | |
| Upper Sidelobe Suppression（dB） | ≤-14 | ≤-14 | ≤-14 | |
| Filling the lower first zero point（dB） | ≥-18 | ≥-18 | ≥-18 | |
| FA&D Electrical Performance Parameter | ||||
| Work Beam | 0 ° Pointing beam gain | ≥19.5 | ≥20.5 | ≥21 |
| 0 °Pointing beam horizontal half power beam width | ≤29 | ≤26 | ≤25 | |
| Horizontal sidelobe level of 0 ° pointing beam | ≤-12 | ≤-12 | ≤-12 | |
| ± 60 °Pointing beam gain | ≥17 | ≥17 | ≥17 | |
| ± 60 °Pointing beam Horizontal half power beam | ≤32 | ≤32 | ≤23 | |
| ± 60 °Pointing beam horizontal side lobe level | ≤-5 | ≤-5 | ≤-5 | |
| 0 °Cross polarization ratio | ≥18 | ≥18 | ≥18 | |
| 0 °Front-to-Back Ratio(dB) | ≥28 | ≥28 | ≥28 | |
| 900&1800MHZ Electrical Performance Parameter | ||
| Frequency (MHz) | 2*( 880-960 ) | 2*(1710-1850) |
| Gain (dBi) | ≥14 | ≥16.5 |
| Horizontal Beam width(3dB) (°) | 65±6 | 65＋6，65-9 |
| Vertical Beam Width(3dB) (°) | ≥12 | ≥6.5 |
| Electrical Downtilt (°) | 0-14 | 2-12 |
| VSWR | ≤1.5 | ≤1.5 |
| Isolation（dB） | ≥25 | ≥25 |
| Isolation Between Ports（dB） | ≥25 | ≥25 |
| Cross polar ratio（dB） | 0°≥15 ±60°≥8 | 0°≥15 ±60°≥8 |
| Upper side lobe suppression(dB）（dB） | ≤-15 | ≤-15 |
| The first zero filling（dB） | ≥-22 | ≥-22 |
| Front to Back Ratio（dB） | ≥25 | ≥25 |
| Pattern | ±45° | ±45° |
| Average power, maximum (W) | ≥120 | ≥120 |
| PIM, 3rd Order (dBm) | ≤-107dBm (@2*43dBm) | |
| Second-order reflection intermodulation（dBm） | ≤-107dBm (@2*43dBm) | |
| Other Parameter | |
| Connector type | 8*7/16DIN female+4*Bundle joint |
| Antenna dimensions (H x W x D) (mm) |
1995*400*200mm |

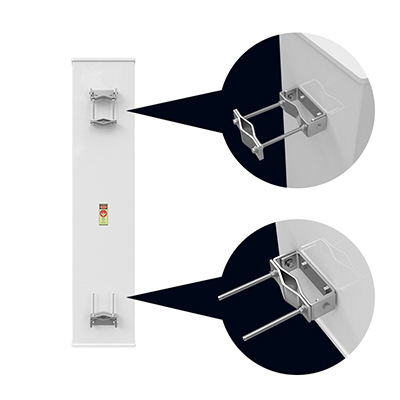

| Antenna weight（kg） | ≤42 |
| Weight of Mounting Kits（kg） | 7 |
| Range of mechanical adjustment（°） |
0～12 |
