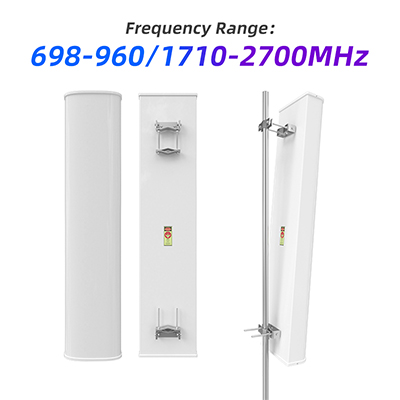

FDD/TDD 17.5dBi 65° Base Station Antenna
ODP-1727X17i065D4A
| Electrical Parameter | |
| Frequency (MHz) | 1710-2700 |
| Gain (dB) | 17.5 |
| Horizontal Beam width(3dB) | 65±6 |
| Vertical Beam Width(3dB) | 7±1 |
| Electrical Downtilt | 0/3/6 |
| VSWR | ≤1.5 |
| Isolation Between Ports | ≥30 |
| Cross Polarization Ratio | 0°≥15 ±60°≥10 |
| Upper Sidelobe Suppression | 16 |
| Front to Back Ratio(dB) | ≥25 |
| Polarization | ±45° |
| Input Maximum CW Power | ≥50 |
| PIMD 3th | ≤-107 (@20W) |
| Impedance | 50 |
| Input Connector | 4*7/16DIN female |
| Other Parameter | |
| Dimensions of Antenna | 1200×290×86 |
| Dimensions of Package | 1200×290×86 |
| Weight of Antenna | 15 |

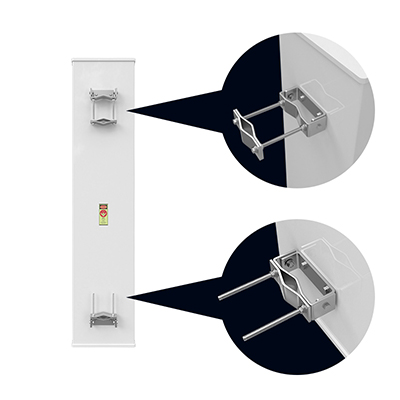

| Weight of Mounting Kits | 5.3 |
| Install Position Adjustment | 0~14 |
| Temperature | -40~+60 |
| Radome Material | 玻璃钢(FRP) |
| Diameter of Installation pole | Φ50~ 80 |
