FDD/TDD19.5dBi 32° Base Station Antenna
ODP-1727X19i032D2A
| Electrical Parameter | |
| Frequency (MHz) | 1710-2700 |
| Gain (dB) | 19.5 |
| Horizontal Beam width(3dB) | 32±4 |
| Vertical Beam Width(3dB) | 7±1 |
| Electrical Downtilt | 0/3/6 |
| VSWR | ≤1.5 |
| Isolation Between Ports | ≥28 |
| Cross Polarization Ratio | 0°≥15 ±60°≥10 |
| Upper Sidelobe Suppression | ≤-15 |
| Null-fill | ≤23 |
| Front to Back Ratio(dB) | ≥28 |
| Polarization | ±45° |
| Input Maximum CW Power | 250 |
| PIMD 3th | ≤-107 (@20W) |
| Impedance | 50 |
| Input Connector | 2*7/16DIN female |
| Other Parameter | |
| Dimensions of Antenna | 1370×290×86 |
| Dimensions of Package | 1700×340×180 |
| Weight of Antenna | 10 |

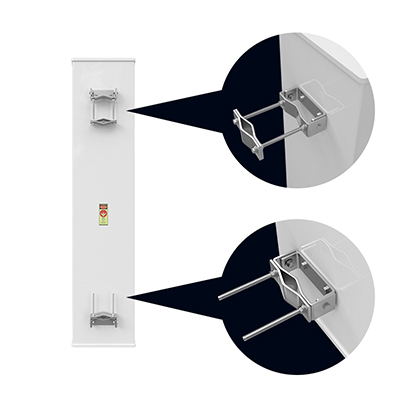

| Weight of Mounting Kits | 1.2 |
| Install Position Adjustment | 0~10 |
| Temperature | -40~+60 |
| Radome Material | 工程塑料、玻璃钢 (Plastic or FRP) |
| Diameter of Installation pole | Φ50~ 80 |
