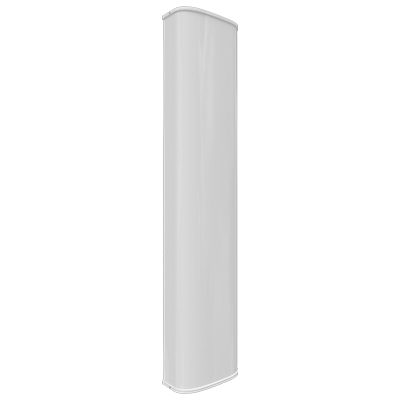

885-960MHz 16.5dB i 65° Narrowband IoT Base Station Antenna

Short Description:
4 Ports; 16.5dB i 65°
VSWR：≤1.5; Frequency band：885-960MHz
Applicable to various countries and regions.

We supply OEM&ODM service

Return within 30 days!

One year warranty and life-long service!

Send request

Product details

Product tags

ODP-0809X16i065D4C

Electrical Parameter
Frequency (MHz)	885-960	885-960
Gain (dBi)	16.5	16.5
Horizontal Beam width(3dB)	65±6	65±6
Vertical Beam Width(3dB)	≥8	≥8
Electrical Downtilt (°)	2-12	2-12
VSWR	≤1.5	≤1.5
Isolation (dB)	≥25	≥25
Isolation Between Ports (dB)	≥25	≥25
Cross Polarization Ratio (dB)	0°≥15 ±60°≥8	0°≥15 ±60°≥8
Upper Sidelobe Suppression (dB)	≤-15	≤-15
Front to Back Ratio (dB)	≥25	≥25
Polarization	±45°	±45°
Input Maximum CW Power (W)	≥80	≥80
PIMD 3th (dBm)	≤-107dBm(@2*43dBm)
PIMD 2th (dBm)	≤-107dBm(@2*43dBm)
Impedance (Ω)	50
Input Connector	4*7/16DIN female

Other Parameter
Dimensions of Antenna (mm)	1907×416×164
Dimensions of Package(mm)	2155×500×275
Weight of Antenna(kg)	25.5
Weight of Mounting Kits(kg)	4.7
Install Position Adjustment(°)	0~12
Temperature(℃)	-40~+70
Radome Material	玻离钢FRP
Diameter of Installation pole(mm)	Φ50~ Φ110
