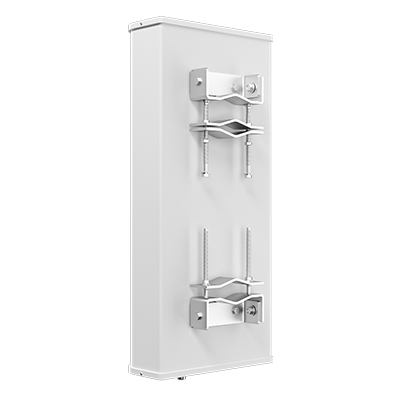

Directional Panel (ODP-3843V05i090N1A, 5dBi)
ODP-3843V05i090N1A
| Electrical Specifications | |||
| Frequency MHz | 380~430 | ||
| Gain dBi | 5±1dBi | ||
| Polarization | Vertical | ||
| Beam width | Horizontal 。 | 90±5° | |
| Vertical 。 | 65±8° | ||
| VSWR | ≤2.0 | ||
| Front-to-back Ratio dB | ≥20 | ||
| Electrical Downward Tilt | 0/3/6/9 | ||
| Max Input Power W | 100 | ||
| Lightning Protection | DC Ground | ||
| Impedance Ω | 50 | ||
| Mechanical Specifications | |||
| Connector | N or 4.3-10 female | ||
| Dimensions mm | 400x280x125 | ||
| Packing Dimensions mm | 475 x345x220/1 pcs in1 carton | ||
| Weight Kg | 2.50 | ||
| Rated Wind Velocity m/s | 60 | ||
| Reflector Material | Aluminum | ||
| Radome material & Color | UPVC,Grey | ||
| Installation | Pole Mount(Φ30~Φ75) | ||
| Mechanical Tilt 。 | 0~10 | ||
| Operational Temperature ℃ | -40~+70 | ||
| Operational Humidity % | <95 | ||
| Application | Indoor or Outdoor/IP65 | ||
| Lightning Protection | DC Grounding | ||
