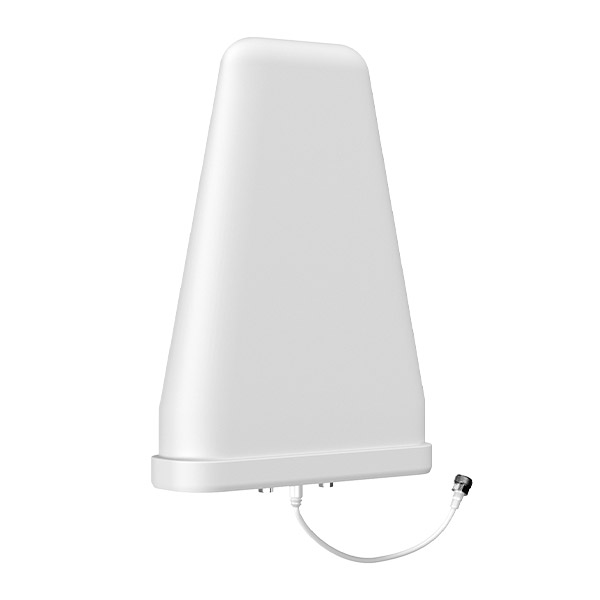

698-3700MHz 9/10dBi Log-periodic Antenna
OLP-0737V10i055N1A
| Electrical Parameter | |
| Frequency (MHz) | 698-960/1710-3700 |
| Polarization | Single |
| Gain (dB)9 | 9±1/ 10±1 |
| VSWR | ≤1.5 |
| Horizontal Beamwidth(°) | 75±15 |
| Intermodulation (dBm) (2*33dBm) | ≤-85 |
| Input impendence | 50Ω |
| Max power (W) | 50 |
| Connector type | N-female |
| Other Parameter | |
| Antenna color | White |
| Radome material | ABS |
| Weight (g) | ≤400 |
| Dimension (mm) | 404*210*50 |
| Working Temperature (℃) | -40 ~ +60 |
| Environment Temperature (℃) | -40 ~ +60 |
