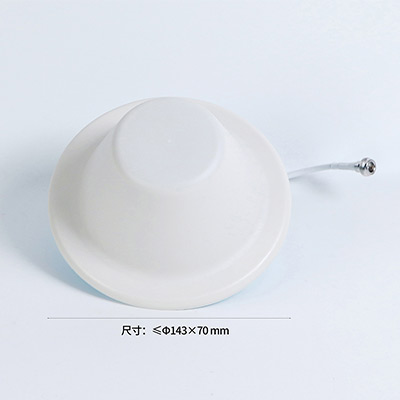

Single Polarization Omnidirectional Ceiling Antenna
IXD-0837V04i360N1A
| Electrical Parameter | |
|---|---|
| Frequency (MHz) | 806-960/1710-3700 |
| Polarization | Vertical |
| Gain (dB) | 2±1/4±1 |
| VSWR | ≤1.5 |
| Horizontal Beamwidth(°) | 360 |
| Intermodulation (dBm) (2*33dBm) | ≤-85 |
| Input impendence | 50Ω |
| Max power (W) | 50 |
| Connector type | N-female |
| Other Parameter | |
|---|---|
| Antenna color | White |
| Radome material | ABS |
| Weight (g) | ≤130 |
| Dimension (mm) | ≤Φ143×70 |
| Working Temperature (℃) | -40 ~ +60 |
| Limit Temperature(℃) | -55 ~ +70 |
