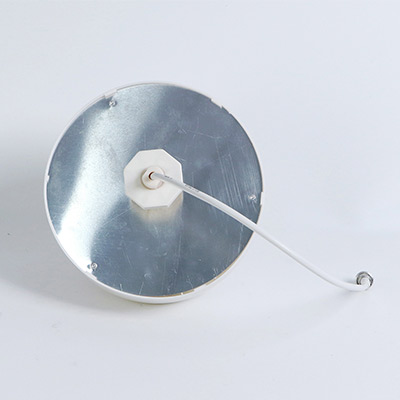

Enhanced Edge Coverage Single Polarization Omnidirectional Ceiling Antenna
IXD-0738V03i360N1B
| Electrical Parameter | |
|---|---|
| Frequency (MHz) | 698-960/1710-3800 |
| Polarization | Vertical |
| Gain (dB) | 1.5/3 |
| VSWR | ≤1.5 |
| Pattern Azimuthal Ripple(dB) | ±1 |
| Intermodulation (dBm) (2*33dBm) | ≤-107 |
| Input impendence | 50Ω |
| Max power (W) | 50 |
| Connector type | N-female |
| Other Parameter | |
|---|---|
| Antenna color | White |
| Radome material | ABS |
| Weight (g) | ≤350 |

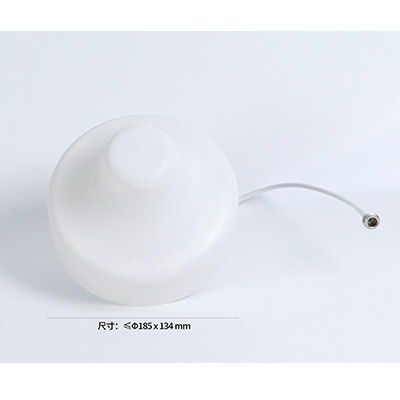

| Dimension (mm) | ≤Φ185×134 |
| Working Temperature (℃) | -40 ~ +60 |
| Limit Temperature(℃) | -55 ~ +70 |
