Omni Ceiling Antenna (IXD-6960V05i360N1B, -153dBc)
Specifications
Radiation Patterns
| Product Number | IXD-6960V05i360N1B | ||||||||||
| Electrical Specifications | |||||||||||
| Frequency | MHz | 694-806 | 860-960 | 1695-1880 | 1880-1990 | 1990-2180 | 2305-2360 | 2360-2700 | 2700-3200 | 3200-6000 | |
| Gain | dBi | 2.0 | 2.2 | 3.5 | 4.1 | 4.2 | 4.3 | 4.4 | 4.3 | 4.5 | |
| Polarization | Vertical | ||||||||||
| Beam width |
Horizontal | 。 | 360 | ||||||||
| Vertical | 。 | 95 | 90 | 60 | 56 | 54 | 50 | 43 | 40 | 30 | |
| VSWR | ≤1.8 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ||
| 3rd PIM,2x20W | dBc | ≤-153 | - | ||||||||
| Max Input Power | W | 50 | |||||||||
| Impedance | Ω | 50 | |||||||||
| Mechanical Specifications | |||||||||||
| Connector | N or 4.3-10 female | ||||||||||
| Dimensions | mm | Φ203x115 | |||||||||
| Weight | Kg | 0.37 | |||||||||
| Installation/Mounting Kit | Ceiling, via hole/Lock Nut Included | ||||||||||
| Radome Material & Color | ABS,White | ||||||||||
| Operational Temp. | ℃ | -40~+55 | |||||||||
| Operational Humidity | % | <95 | |||||||||
| Application | Indoor/IP64 | ||||||||||
| Packing Information | Carton Size: 920 x 375 x 375 mm,20 pcs, Gross Weight: 12.0 Kg | ||||||||||

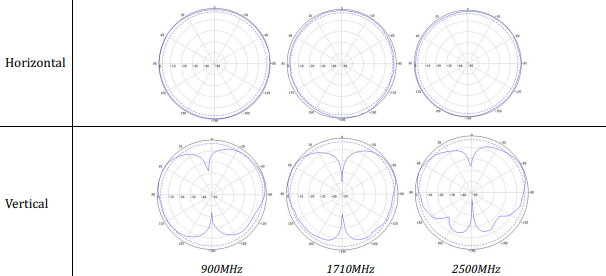

Radiation Patterns
