Omni Ceiling Antenna(IXD-3847V01i360N1A)
Specifications
| Product Number | IXD-3847V01i360N1A | ||
| Electrical Specifications | |||
| Frequency | MHz | 380-470 | |
| Gain | dBi | 1.0±0.5 | |
| Polarization | Vertical | ||

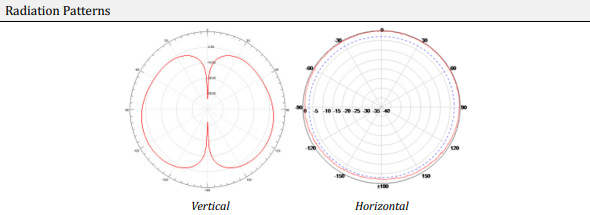

| Beam width | Horizontal | 。 | 360 |
| Vertical | 。 | 65°±10 | |
| VSWR | ≤2.0 | ||
| Max Input Power | W | 50 | |
| Impedance | Ω | 50 | |
| Mechanical Specifications | |||
| Connector | N or 4.3-10 female | ||
| Dimensions | mm | Φ203x120 | |
| Weight | Kg | 0.35 | |
| Mounting Kit | Ceiling, via hole (Standard) | ||
| Radome Material & Color | ABS,White | ||
| Rated Wind Velocity | m/s | 60 | |
| Operational Temperature | ℃ | -40~+55 | |
| Operational Humidity | % | <95 | |
| Application | Indoor/IP64 | ||
| Packing Dimensions | mm | 925 x 390 x 400/20 pcs in 1 carton | |
| Quantity in 1 Carton | pcs | 20 | |
