Omni Ceiling Flat Antenna(IXD-3827H04i360N1A, -140dBc)
Specifications
Radiation Patterns
| Product Number | IXD-3827H04i360N1A | |||
| Electrical Specifications | ||||
| Frequency | MHz | 380-520 | 698-960 | 1710-2700 |
| Gain | dBi | 2.0±1.0 | 2.2±1.0 | 4.0±1.0 |
| Polarization | Horizontal | |||
| VSWR | ≤2.5 | ≤2.0 | ≤2.0 | |
| 3rd PIM,2x20W | dBc | - | ≤-140 | ≤-140 |
| Max Input Power | W | 50 | ||
| Impedance | U | 50 | ||
| Mechanical Specifications | ||||
| Connector | N or 4.3-10 female | |||
| Dimensions | mm | Φ266x18 | ||
| Weight | Kg | 0.40 | ||
| Mounting Kit | Ceiling, via hole (Standard) | |||
| Radome Material & Color | ABS,White | |||
| Operational Temperature | ℃ | -55~+60 | ||
| Operational Humidity | % | <95 | ||
| Application | Indoor/IP64 | |||
| Packing Information | Carton Size: 575 x 535 x 580 mm, 20 pcs, Gross Weight:16.0 Kg | |||

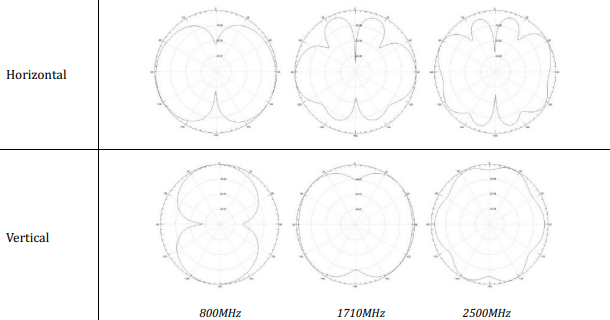

Radiation Patterns
