Omni Ceiling Flat Antenna(IXD-6160H06i360N1A,-153dBc)
Specifications
Radiation Patterns
| Product Number | IXD-6160H06i360N1A | ||||||
| Electrical Specifications | |||||||
| Frequency | MHz | 617-806 | 806-960 | 1350-1550 | 1710-2700 | 3400-3800 | 4900-6000 |
| Gain | dBi | 1.5±0.5 | 2.2±0.5 | 3.5±0.5 | 4.5±1.0 | 6.0±1.0 | 6.0±1.0 |
| Polarization | Linear | ||||||
| VSWR | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | |
| 3rd PIM,2x20W | dBc | ≤-153 | |||||
| Max Input Power | W | 50 | |||||
| Impedance | U | 50 | |||||
| Mechanical Specifications | |||||||
| Connector | N or 4.3-10 female | ||||||
| Dimensions | mm | Φ220x18 | |||||
| Weight | Kg | 0.30 | |||||
| Mounting Kit | Ceiling, via hole (Standard) | ||||||
| Radome Material & Color | ABS,White | ||||||
| Operational Temperature | ℃ | -55~+60 | |||||
| Operational Humidity | % | <95 | |||||
| Application | Indoor/IP64 | ||||||
| Packing Information | Carton Size: 485 x 465 x 470 mm, 20 pcs, Gross Weight: 15.0 Kg | ||||||

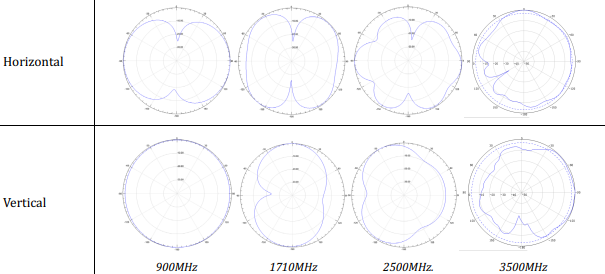

Radiation Patterns
