Single Polarization Broadband Wall-mount Panel Antenna

Short Description:
High gain antenna:8dB.Polarization:Vertical
Frequency band:698-800 /800-960 /1710-2700 /3300-3700MHz
Applicable to various countries and regions
We supply OEM&ODM service
Return within 30 days!
One year warranty and life-long service!
     IBG-0737V08i070N1A
    Electrical Parameter
    Frequency (MHz) 698-800 /800-960 /1710-2700 /3300-3700
    Polarization Vertical
    Gain (dB) 5±0.5 /8±0.5 /6±0.5
    VSWR ≤1.8/≤1.5
    Horizontal Beamwidth(°) 115±15/ 95±15/ 75±15 /95±15
    Input impendence 50Ω
    Max power (W) 50
    Connector type N-female

    Other Parameter
    Antenna color White
    Radome material ABS
    Weight (g) ≤500

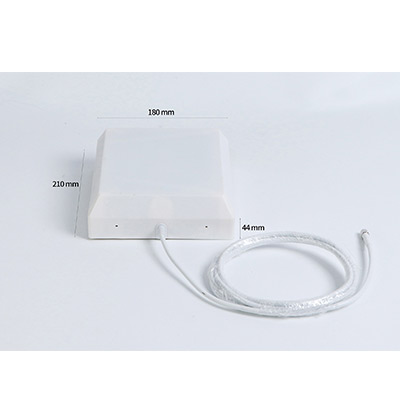

    Dimension (mm) ≤210×180×44
    Working Temperature (℃) -40 ~ +60
    Limit Temperature(℃) -55 ~ +70
