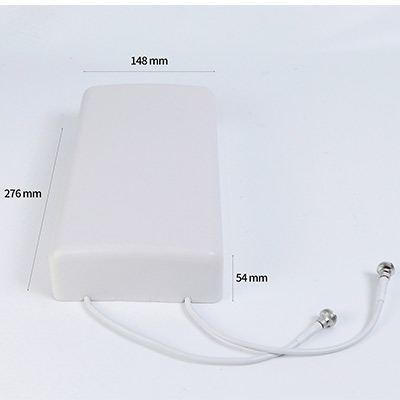

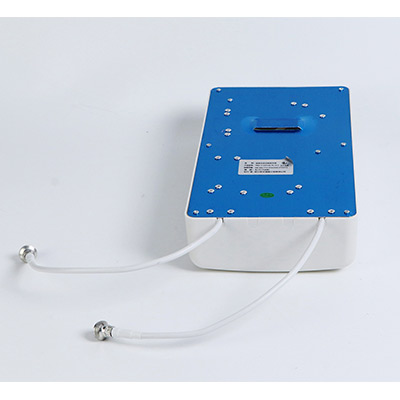

Full Frequency Dual Polarization Wall-mount Panel Antenna
IBG-0727X07i065N2B
| Electrical Parameter | |
| Frequency (MHz) | 698-960/1710-2700 |
| Polarization | ±45 |
| Gain (dB) | 7 |
| VSWR | ≤1.8 |
| Vertical Beamwidth(°) | 70±15 |
| Horizontal Beamwidth(°) | 95±15/65±15 |
| Front to Back Ratio(dB) | 15 |
| Intermodulation (dBm) (2*33dBm) | ≤-107 |
| Input impendence | 50Ω |
| Max power (W) | 50 |
| Connector type | 2*N-female |
| Other Parameter | |
| Antenna color | White |
| Radome material | ABS |
| Weight (g) | ≤1300 |
| Dimension (mm) | ≤276×148×54 |
| Working Temperature (℃) | -40 ~ +60 |
| Limit Temperature(℃) | -55 ~ +70 |
