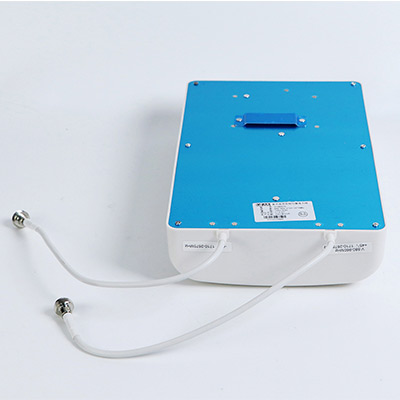

Indoor Directional Single Polarization Wall-mount Panel Antenna
IBG-0827X08i075N2A
| Electrical Properties | |||||||
| Frequency range (MHz) | 880-960 | 1710-1850 | 1885-1915 | 2010-2025 | 2030-2400 | 2400-2483.5 | 2515-2675 |
| VSWR | ≤1.5 | ||||||
| Horizontal Beam width | 90±10 | 75±10 | 75±10 | 75±10 | 75±10 | 75±10 | 75±10 |
| Vertical Half Power Beam Width（°） | 85 | 65 | 65 | 65 | 65 | 60 | 55 |
| Polarization | V | ±45° | |||||
| Gain (dBi) | ≥6.5 | ≥7.5 | ≥7.5 | ≥7.5 | ≥8 | ≥8 | ≥8 |
| Cross polarization ratio（dB） | / | ≥15 | |||||
| Front to back ratio （dB） | ≥12 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 |
| Polarization isolation (dB) | ≥25 | ||||||
| Intermodulation（dBm） （2*33dBm） | ≤-85 | ≤-85 | / | / | / | / | / |
| Average power tolerance (W) | ≥50 | ||||||
| Lightning Protection | DC ground | ||||||
| Interface form | 2*N-Female | ||||||
| Mechanical Properties | |

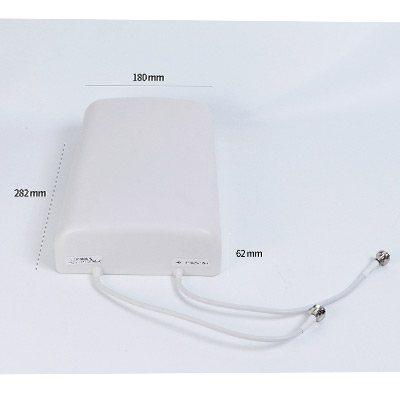

| Antenna dimensions (H x W x D) (mm) | ≤282*180*62 |
| Antenna weight (kg) | ≤0.421 |
| Radome materia | PS |
| Antenna’s colour | White |
| Operational temperature (℃) | –30 to +45 |
| Working humidity | ≤95%@40℃ |
