A Filter 1920-1980 & 2110-2170 MHz

Product features:
50dB attenuation;Single or Double;Very low insertion loss ;
Excellent intermodulation performance;Built-in lightning protection;
Minimal installation volume.

We supply OEM&ODM service

Return within 30 days!

One year warranty and life-long service!

Send request

Product details

Product tags

Single Double Schematic diagram

Specifications

Part No.	82078
Electrical
Frequency range (MHz)	8207810	1950-1965&2140-2155
	8207811	1920-1935&2110-2125
	8207812	1965-1980&2155-2170
Insertion loss (dB)	≤1.8/0.5
Isolation (dB)	8207863	≥50@1970-2000
	8207864	≥50@1940-2000
	8207865	≥50@1985-2000
Return loss/VSWR	≤-20 dB/1.22
Intermodulation (dBc)	≤-150/155/160 (with 2×20W)
Impedance (Ω)	50Ω
Input power (W)	≤200W (avg.)
DC/AISG	By-pass (max. 3000mA)
Lightning protection	10KA; 10/350μs pulse
Environmental
Operation temperature	-10°C to +55 °C
Storage temperature	-30 °C to +75 °C
Relative humidity	5% - 95%
Application	Indoor or outdoor (IP67)
Mechanical
Connectors	4.3-10 F/M
Packing	1pc /box

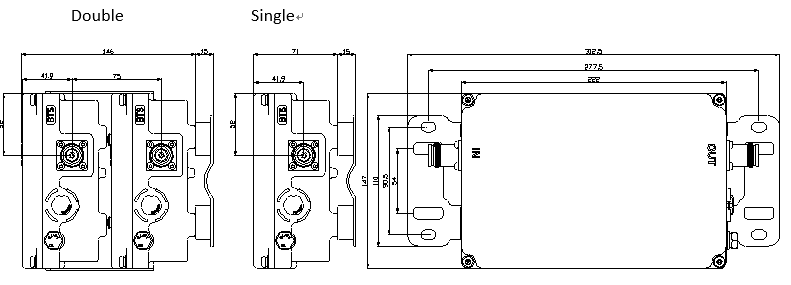

Code	Type	DC pass	Weight (kg)	Dimensions (mm)	Connectors
8207810	Single	DC pass all	≤2.2	22214771	4.3-10 F/M
8207811	Single	DC pass all	≤2.2	22214771	4.3-10 F/M
8207812	Single	DC pass all	≤2.2	22214771	4.3-10 F/M
82078XX	Double	DC pass all	≤4.5	222147146	4.3-10 F/M
