C Filter 1710-1785&1805-1873 MHz

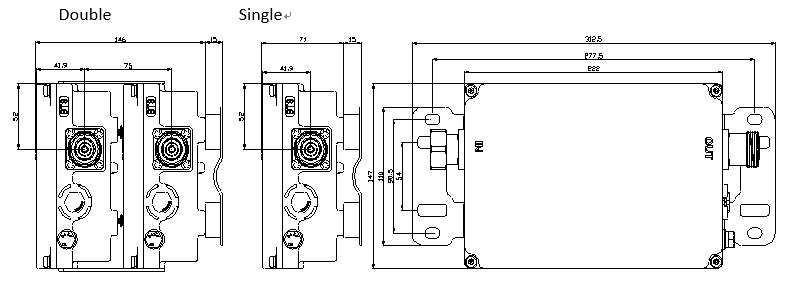

Schematic diagram
Optional model
Typical Attenuation Curves
| Part No. | 8207850 |
| Electrical | |
| Frequency range (MHz) | 1710-1785 & 1805-1873 |
| Insertion loss (dB) | ≤1.0 |
| Isolation (dB) | ≥60@1880-2700 |
| Return loss/VSWR | ≤-20 dB/1.22 |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) |
| Impedance (Ω) | 50Ω |
| Input power (W) | ≤200W (avg.) |
| DC/AISG | By-pass (max. 3000mA) |
| Lightning protection | 10KA; 10/350μs pulse |
| Environmental | |
| Operation temperature | -10°C to +55 °C |
| Storage temperature | -30 °C to +75 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP67) |
| Mechanical | |
| Connectors | DIN-F/M |
| Packing | 1pc /box |
Optional model
| Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
| 8207850 | Single | DC pass all | ≤2.2 | 222*147*71 | DIN-F/M |
| 82078xx | Double | DC pass all | ≤4.5 | 222*147*146 | DIN-F/M |

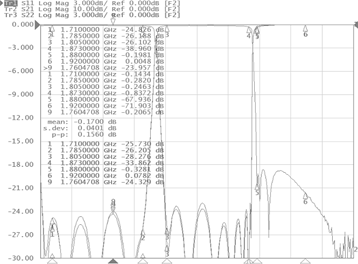

Typical Attenuation Curves
