E Filter 824-835 & 869-880 MHz

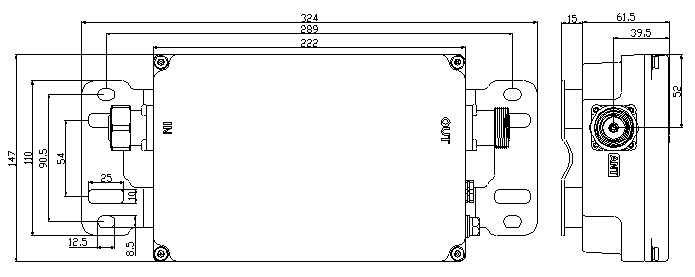

Schematic diagram
Optional model

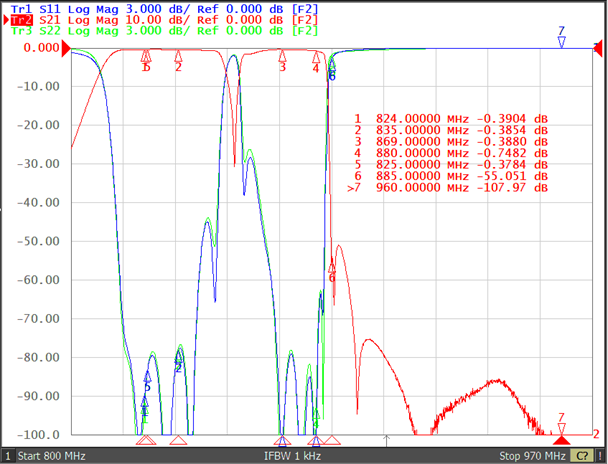

Typical Attenuation Curves
| Part No. | 82500 |
| Electrical | |
| Frequency range (MHz) | 824-835&869-880 |
| Insertion loss (dB) | ≤0.6@825-835 ≤1.0@869-880 |
| Isolation (dB) | ≥45@885-960 |
| Return loss/VSWR | ≤-20 dB/1.22 |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) |
| Impedance (Ω) | 50Ω |
| Input power (W) | ≤200W (avg.) |
| DC/AISG | By-pass (max. 3000mA) |
| Lightning protection | 10KA; 10/350μs pulse |
| Environmental | |
| Operation temperature | -10°C to +55 °C |
| Storage temperature | -30 °C to +75 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP67) |
| Mechanical | |
| Connectors | DIN-F |
| Packing | 1pc /box |
Optional model
| code | type | DC pass | Weight(Kg) | Dimensions | connectors |
| 8250022 | Single | DC pass | ≤2.2 | 222*147*61.5 mm | 7/16-F/M |
| 8250023 | Single | DC pass | ≤2.2 | 222*147*61.5 mm | 4.3-10-F/M |
Typical Attenuation Curves
