Filter 895-950 MHz
Schematic diagram
Optional model
Typical Attenuation Curves
| Part No. | 82518 |
| Electrical | |
| Frequency range (MHz) | 895-950 |
| Insertion loss (dB) | ≤0.6 |
| Isolation (dB) | ≥80@865-885 |
| Return loss/VSWR | ≤-20 dB/1.22 |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) |
| Impedance (Ω) | 50Ω |
| Input power (W) | ≤200W (avg.) |
| DC/AISG | By-pass (max. 3000mA) |
| Lightning protection | 10KA; 10/350μs pulse |
| Environmental | |
| Operation temperature | -20 °C to +65 °C |
| Storage temperature | -30 °C to +75 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP67) |
| Mechanical | |
| Connectors | DIN-F |
| Packing | 1pc /box |

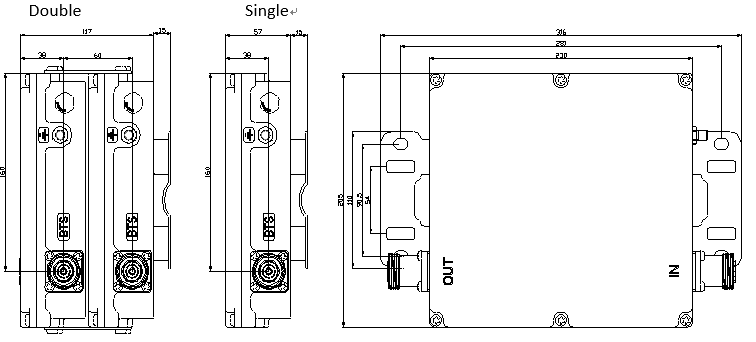

Optional model
| Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
| 8251820 | Single | DC pass all | ≤4 | 230*205*57 | DIN-F |
| 8252821 | Double | DC pass all | ≤8 | 230*205*116 | DIN-F |

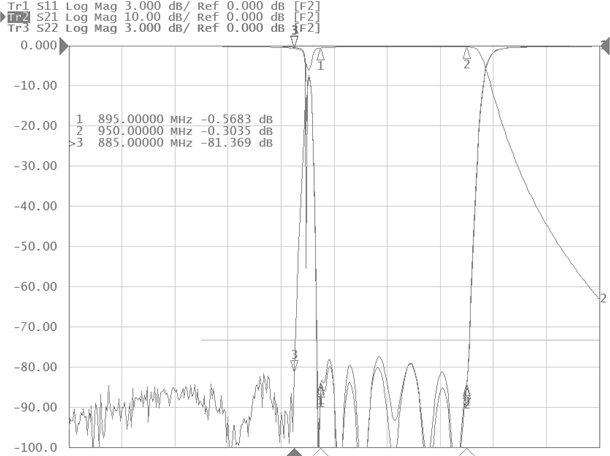

Typical Attenuation Curves
