Filter 889-960 MHz

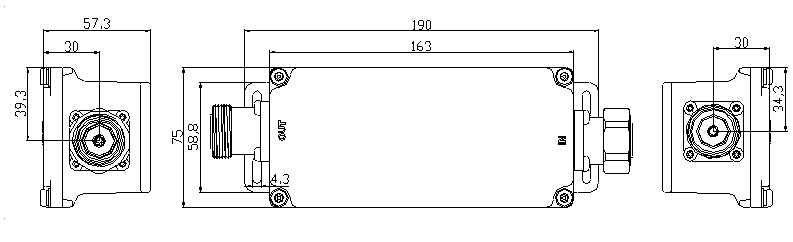

Schematic diagram
Optional model
Typical Attenuation Curves
| Part No. | 82520 |
| Electrical | |
| Frequency range (MHz) | 889-960 |
| Insertion loss (dB) | ≤1.0 |
| Isolation (dB) | ≥60@DC-880 |
| Return loss/VSWR | ≤-20 dB/1.22 |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) |
| Impedance (Ω) | 50Ω |
| Input power (W) | ≤100W (avg.) |
| Environmental | |
| Operation temperature | -20 °C to +65 °C |
| Storage temperature | -40 °C to +85 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP65) |
| Mechanical | |
| Connectors | DIN-F/M |
| Packing | 1pc /box |
Optional model
| Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
| 8252030 | Single | NO | ≤1.4 | 190*75*57.3 | 7/16 F/M |
| 8252031 | Single | NO | ≤1.4 | 190*75*57.3 | 4.3-10F/M |

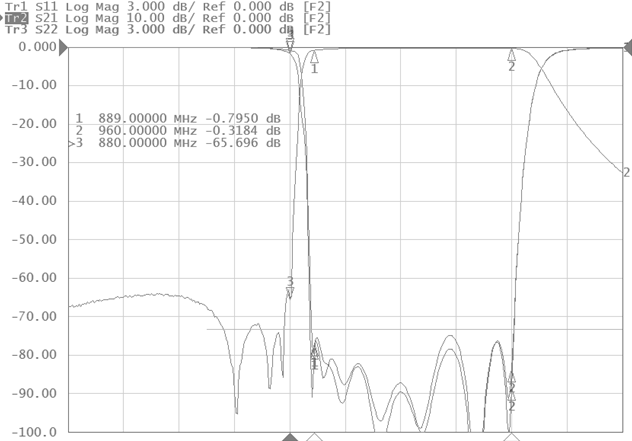

Typical Attenuation Curves
