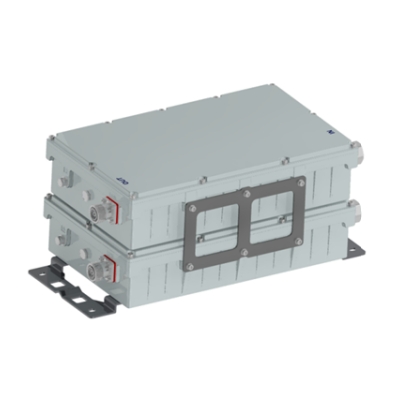

Filter 895-905 & 940-950 MHz
Schematic diagram
Optional model

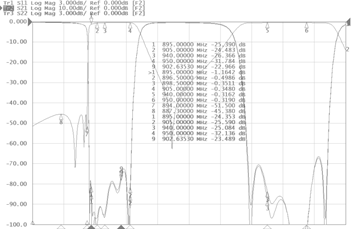

Typical Attenuation Curves
| Part No. | 82528 |
| Electrical | |
| Frequency range (MHz) | 895-905&940-950 |
| Insertion loss (dB) | ≤1.6@895-896.5 ≤0.65@896.5-898.5 ≤0.5@898.5-905 ≤0.5@940-950 |
| Isolation (dB) | ≥45@880-894 |
| Return loss/VSWR | ≤-20 dB/1.22 |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) |
| Impedance (Ω) | 50Ω |
| Input power (W) | ≤200W (avg.) |
| DC/AISG | By-pass (max. 3000mA) |
| Lightning protection | 10KA; 10/350μs pulse |
| Environmental | |
| Operation temperature | -0°C to +55 °C |
| Storage temperature | -30 °C to +75 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP67) |
| Mechanical | |
| Connectors | DIN-F/M |
| Packing | 1pc /box |

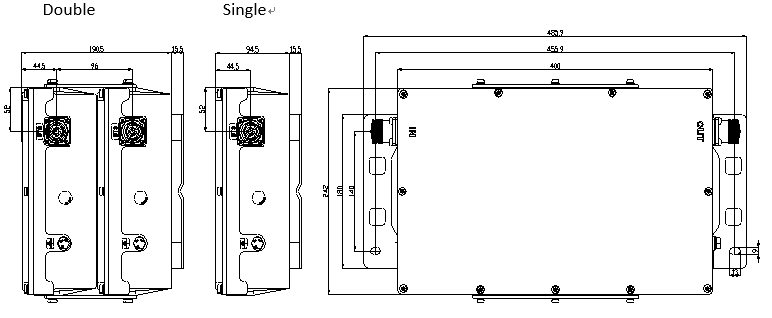

Optional model
| Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
| 8252820 | Single | DC pass all | ≤7.5 | 400*242*94.5 | DIN-F/M |
| 82528D21 | Double | DC pass all | ≤15 | 400*242*190.5 | DIN-F/M |
Typical Attenuation Curves
