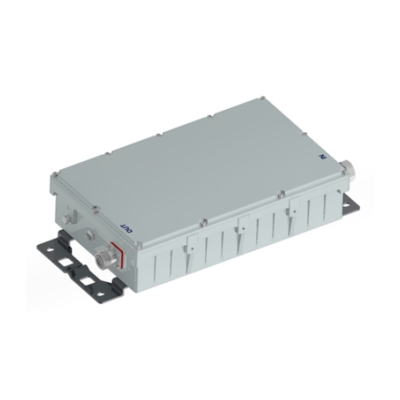

Filter 813-819 & 854.5-862 MHz
Schematic diagram
Optional model

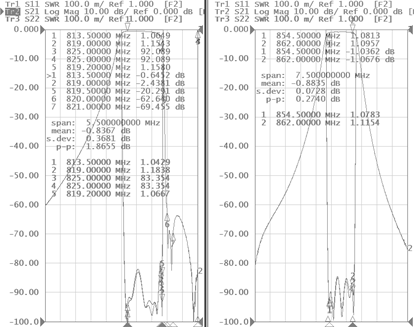

Typical Attenuation Curves
| Part No. | 82528 |
| Electrical | |
| Frequency range (MHz) | 813.5-819&854.5-862 |
| Insertion loss (dB) | ≤2.2@813.5-819 ≤1.0@853.5-863 |
| Isolation (dB) | ≥3@819.3 ≥10@819.5 ≥25@819.8 ≥61@820-821 |
| Return loss/VSWR | ≤-20 dB/1.22 |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) |
| Impedance (Ω) | 50Ω |
| Input power (W) | ≤200W (avg.) |
| DC/AISG | By-pass (max.3000mA) |
| Lightning protection | 10KA; 10/350μs pulse |
| Environmental | |
| Operation temperature | -0°C to +55 °C |
| Storage temperature | -30 °C to +75 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP67) |
| Mechanical | |
| Connectors | DIN-F/M |
| Packing | 1pc /box |

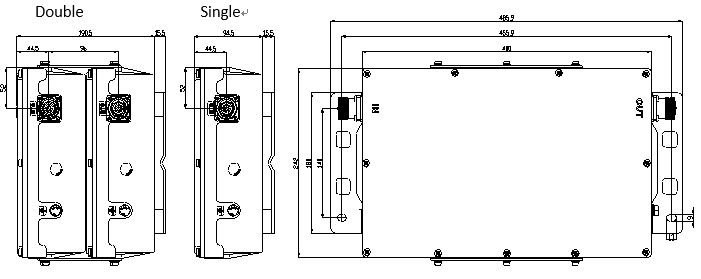

Optional model
| code | type | DC pass | Weight(Kg) | Dimensions | connectors |
| 8252822 | Single | DC pass all | ≤7.5 | 400*242*94.5 | DIN-F/M |
| 8252823 | Double | DC pass all | ≤15 | 400*242*190.5 | DIN-F/M |
Typical Attenuation Curves
