Impedance：50Ω; Power：300W; VSWR：≤1.25 High power waterproof cavity coupler
| Electrical Properties | ||||||||
| Item Name | ZY22561F | ZY22562F | ZY22563F | ZY22564F | ZY22565F | ZY22566F | ZY22567F | ZY22568F |
| Frequency range (MHz) | 703～2700 | |||||||
| Impedance (Ω) | 50 | |||||||
| Coupling (dB) | 5±0.8 | 6±0.8 | 7±0.8 | 10±1.0 | 15±1.0 | 20±1.0 | 30±1.0 | 40±1.5 |
| Isolation (dB) | ≥23 | ≥24 | ≥25 | ≥28 | ≥33 | ≥38 | ≥48 | ≥48 |
| Insertion Loss (dB) | ≤2.3 |
≤1.76 | ≤1.5 | ≤0.96 | ≤0.44 | ≤0.34 | ≤0.3 | ≤0.3 |
| VSWR | ≤1.25 | |||||||
| PIM2(dBc) | ≤-155 (2×43dBm) | |||||||
| PIM3(dBc) | ≤-145 (2×43dBm) | |||||||
| PIM5(dBc) | ≤-155 (2×43dBm) | |||||||
| Power(MAX) (W) | 300 | |||||||
| Connector | N-F | |||||||
| Mechanical Properties | |||
| Temperature (℃) | -40～+65 | ||
| Applied Environment | Indoor /Outdoor | ||
| Humidity | ≤95%( Non-condensing) | ||

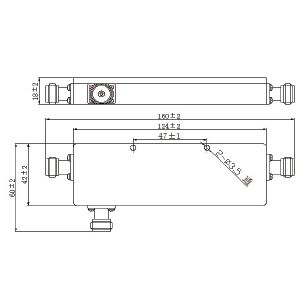

| Dimension (mm)（Without connector） | 112±2*40±2*17.1±2 | 124±2*42±2*18±2 | |
| Weight (g) | 140±20 | 152±20 | 154±20 |
