Combiner698-803/824-960 MHz
Schematic diagram


Optional model
Typical Attenuation Curves


Part No. | 80108 | |
Electrical | ||
Frequency range (MHz) | Port1 | 698-803 |
Port2 | 824-960 | |
Insertion loss(dB) | ≤0.5 | |
Isolation(dB) | ≥50 | |
Return loss/VSWR | ≤-20dB/1.22 | |
Intermodulation (dBc) | ≤-150/155/160 (3rd order; with 2×20W) | |
Impedance (Ω) | 50 Ω | |
Input power (W) | ≤200 W(avg.) | |
DC/AISG | By-pass(max.3000mA) | |
Lightning protection | 10KA; 10/350μs pulse | |
Environmental | ||
Operation temperature | -20°C to +65 °C | |
Storage temperature | -40 °C to +85 °C | |
Relativehumidity | 5% - 95% | |
Application | Indoor or outdoor (IP67) | |
Mechanical | ||
Connectors | 4.3-10 Female | |
Packing | 1pc /box |

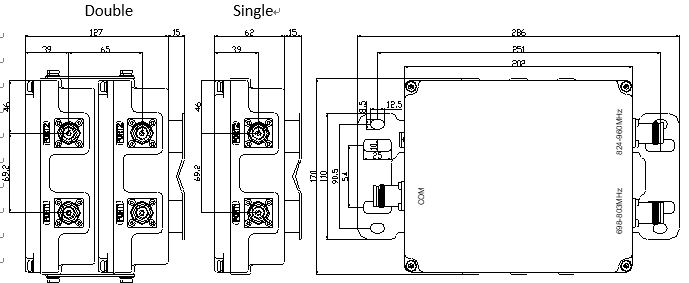

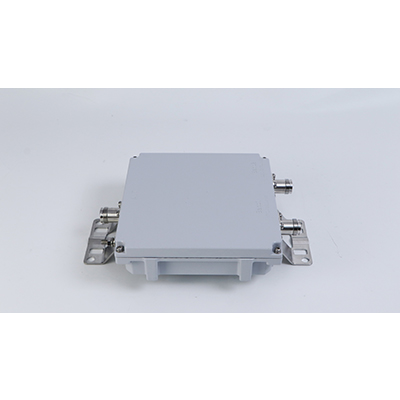

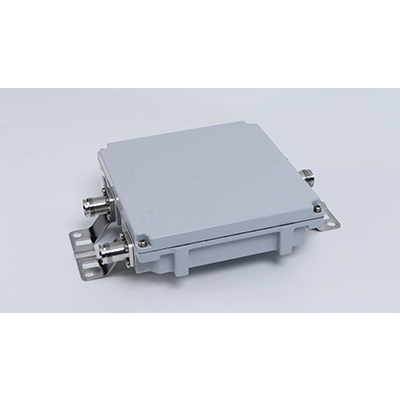

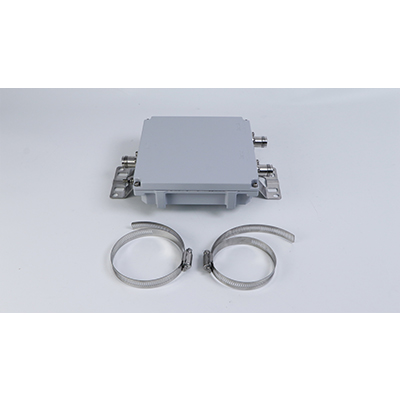

Optional model
Code | Type | DC pass | Weight(kg) | Dimensions (mm) | Connectors |
8010870 | Single | DC pass all | ≤2.8 | 202*170*62 | 4.3-10 Female |
8010871 | Double | DC pass all | ≤5.6 | 202*170*127 | 4.3-10 Female |

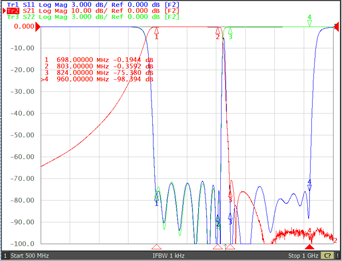

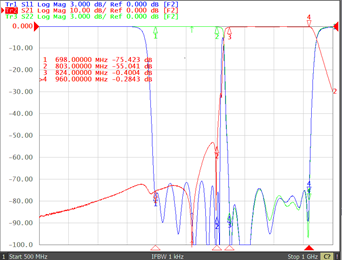

Typical Attenuation Curves
