Combiner 698-862/880-960 MHz

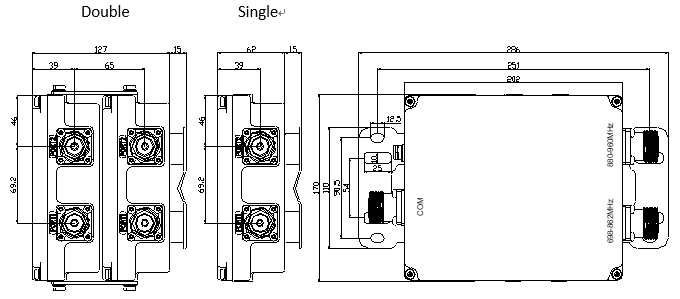

Schematic diagram

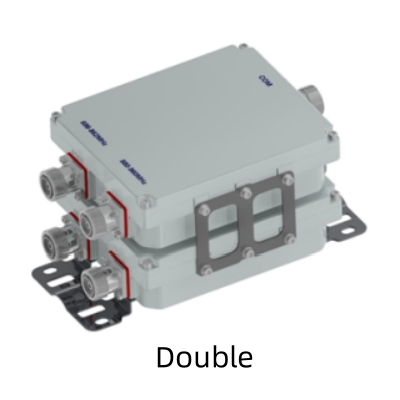

Optional model

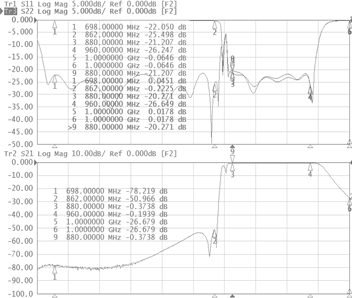

Typical Attenuation Curves
| Part No. | 80108 | |
| Electrical | ||
| Frequency range (MHz) | Port1 | 698-862 |
| Port2 | 880-960 | |
| Insertion loss(dB) | ≤0.5 | |
| Isolation(dB) | ≥50 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155/160 (3rd order; with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W(avg.) | |
| DC/AISG | By-pass(max.3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20°C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relative humidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 7/16 Female | |
| Packing | 1pc /box | |
Optional model
| Code | Type | DC pass | Weight(kg) | Dimensions (mm) | Connectors |
| 8010890 | Single | DC pass all | ≤2.8 | 202*170*62 | 7/16 Female |
| 8010891 | Double | DC pass all | ≤5.6 | 202*170*127 | 7/16 Female |

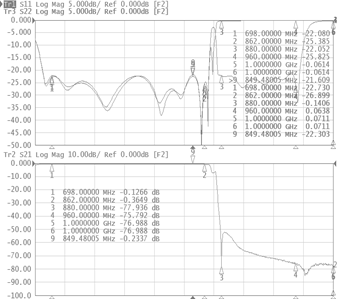

Typical Attenuation Curves
