Combiner 555-2180/2300-2700 MHz

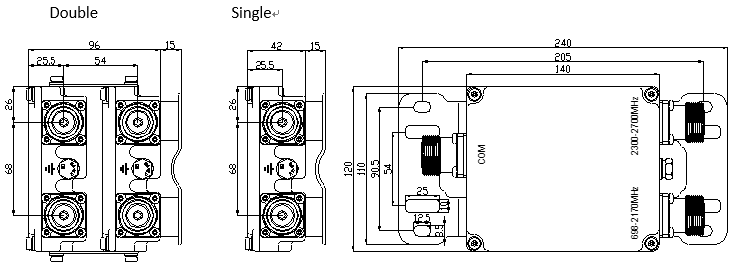

Schematic diagram


Optional model
Typical Attenuation Curves



Part No. | 80286 | |
Electrical | ||
Frequency range (MHz) | Port1 | 555-2180 Or 698-2180 |
Port2 | 2300-2700 | |
Insertion loss (dB) | ≤0.4 | |
Isolation (dB) | ≥60 | |
Return loss/VSWR | ≤-20dB/1.22 | |
Intermodulation (dBc) | ≤-150/155 (with 2×20W) | |
Impedance (Ω) | 50 Ω | |
Input power (W) | ≤200 W (avg.) | |
DC/AISG | By-pass (max. 3000mA) | |
Lightning protection | 10KA; 10/350μs pulse | |
Environmental | ||
Operation temperature | -20°C to +65 °C | |
Storage temperature | -40 °C to +85 °C | |
Relative humidity | 5% - 95% | |
Application | Indoor or outdoor (IP67) | |
Mechanical | ||
Connectors | 7/16 Female | |
Packing | 1pc /box |

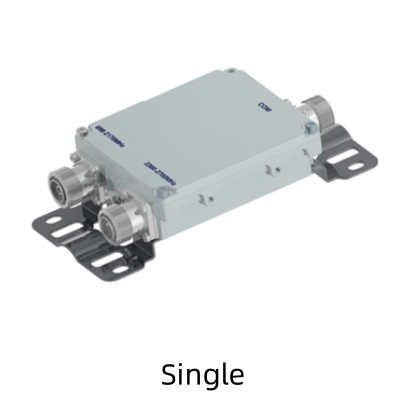

Optional model
Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
8028652 | Single | DC pass all | ≤1.2 | 140*120*42 | 7/16 Female |
8028654 | Double | DC pass all | ≤2.5 | 140*120*96 | 7/16 Female |

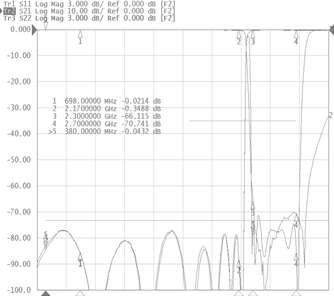

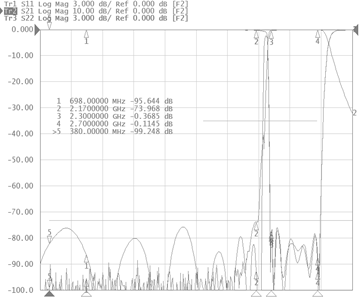

Typical Attenuation Curves
