Combiner 555-2180/2300-2700 MHz

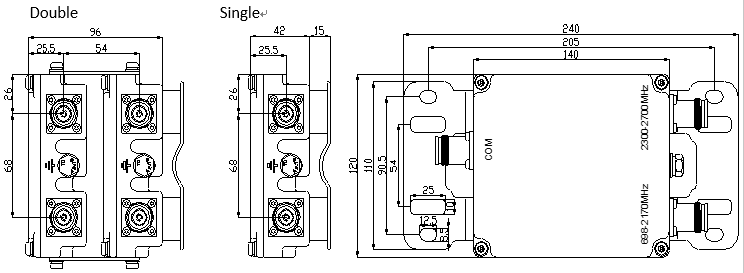

Schematic diagram
Optional model

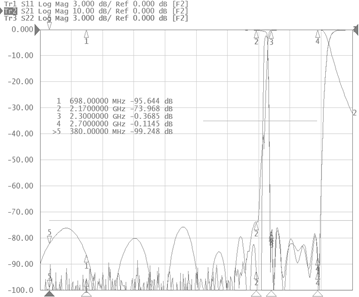

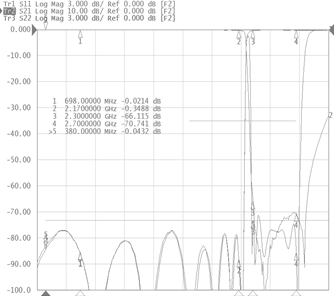

Typical Attenuation Curves
| Part No. | 80286 | |
| Electrical | ||
| Frequency range (MHz) | Port1 | 698-2170 Or 555-2180 |
| Port2 | 2300-2700 | |
| Insertion loss (dB) | ≤0.4 typ.0.2 | |
| Isolation (dB) | ≥60 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155 (with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20°C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relative humidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 4.3-10 Female | |
| Packing | 1pc /box | |

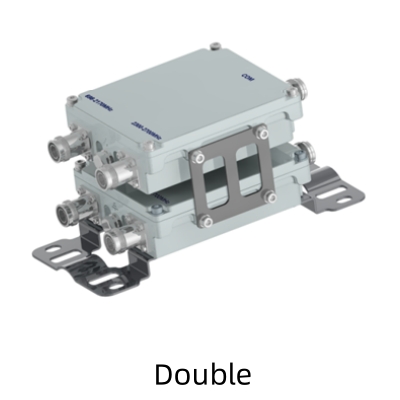

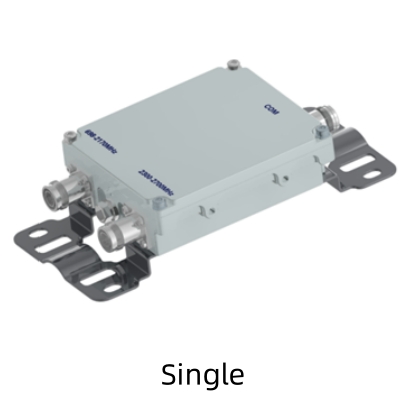

Optional model
| Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
| 8028660 | Single | DC pass all | ≤1.2 | 140*120*42 | 4.3-10 Female |
| 8028661 | Double | DC pass all | ≤2.5 | 140*120*96 | 4.3-10 Female |
Typical Attenuation Curves
