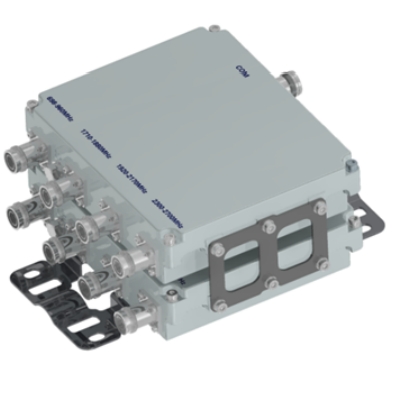

Combiner 698-960/1710-1880/1920-2170/2300-2700MHz .80629.1
| Part No. | 80629 | |
| Electrical | ||
| Frequency range (MHz) | Port1 | 698-960 |
| Port2 | 1710-1880 | |
| Port3 | 1920-2170 | |
| Port4 | 2300-2700 | |
| Insertion loss (dB) | ≤0.35 | |
| Isolation (dB) | ≥50 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W (avg.) | |

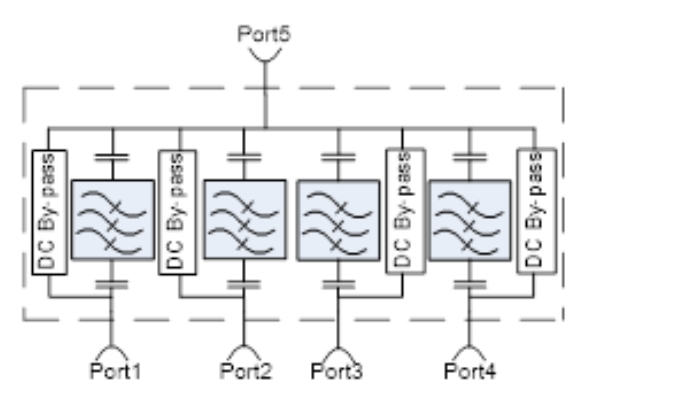

| DC/AISG | By-pass (max. 3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20 °C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relative humidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 4.3-10Female | |
| Packing | 1pc /box | |

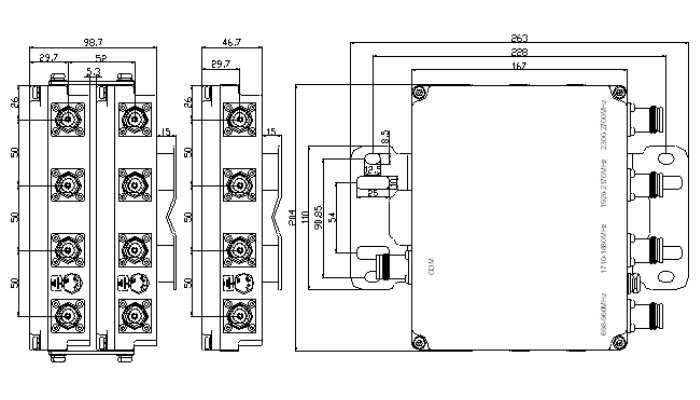

| Code | Type | DC pass | Weight(kg) | Dimensions (mm) | Connectors |
| 8062970 | Single | DC pass all | ≤3 | 204*167*46.7 | 4.3-10 Female |
| 8062971 | Double | DC pass all | ≤6 | 204*167*98.7 | 4.3-10 Female |
