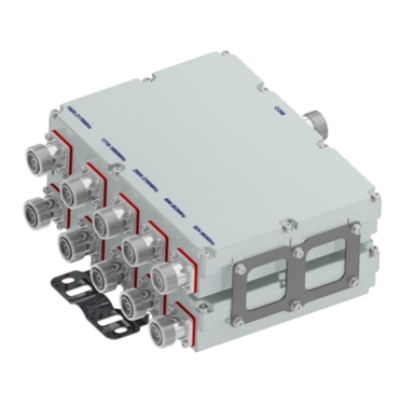

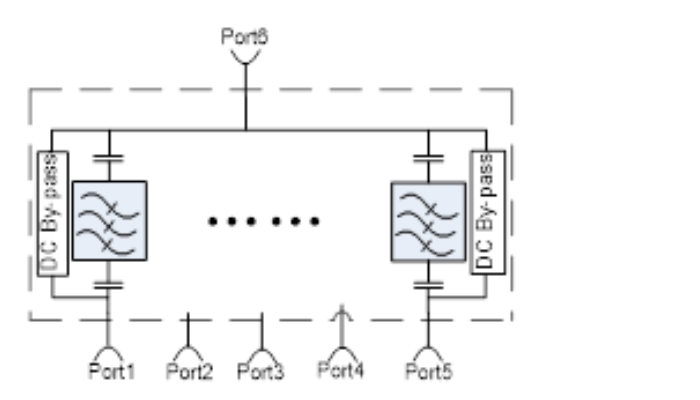

Combiner 694-803/824-960/1710-1880/1920-2170/2500-2700 MHz .80223.1

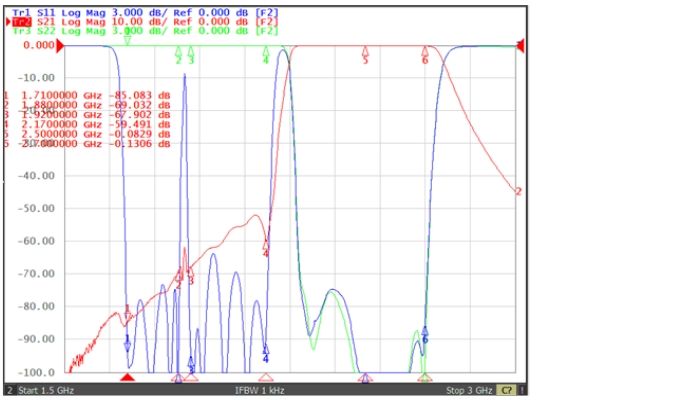

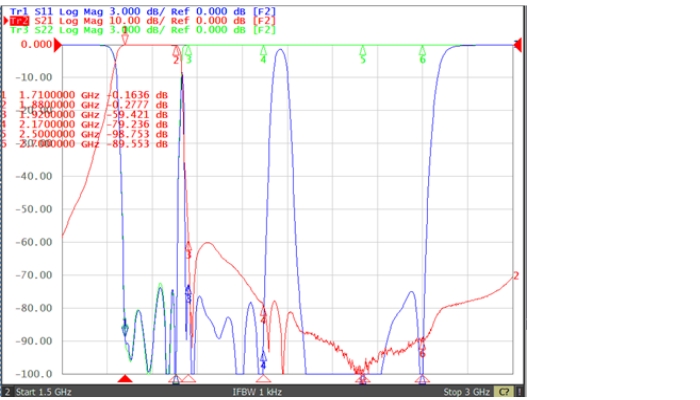

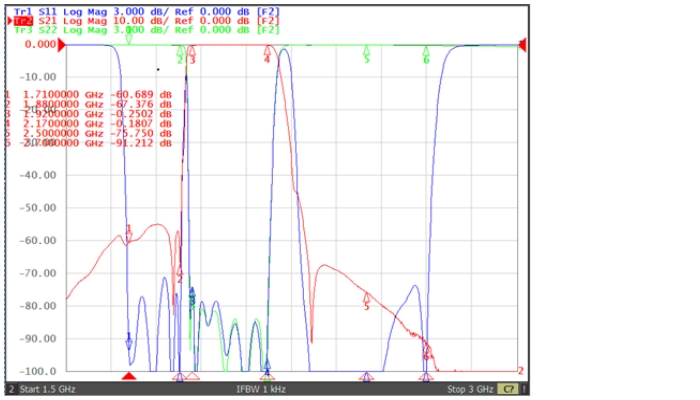

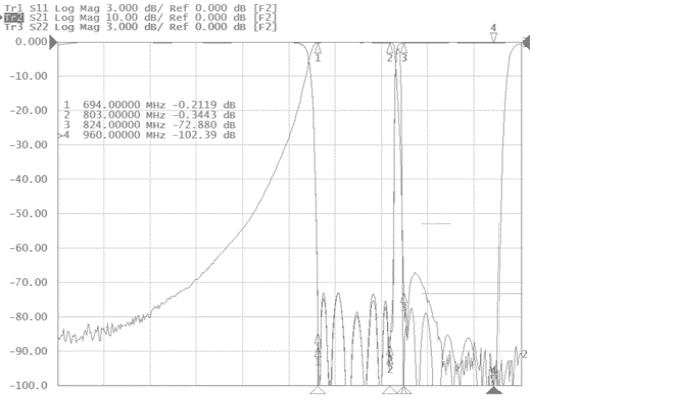

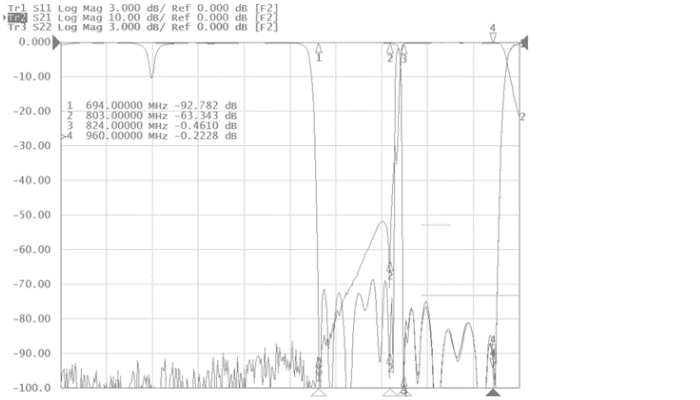

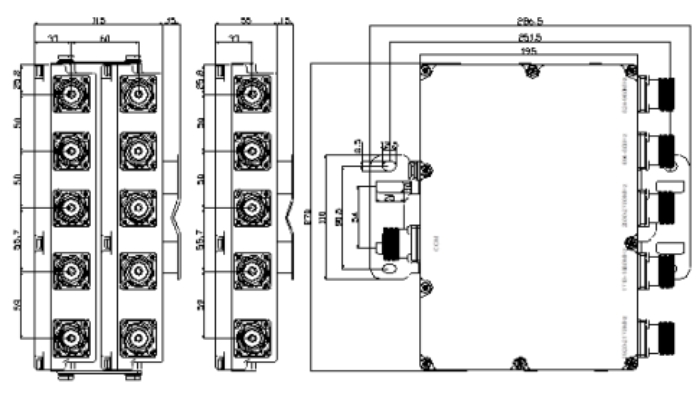

| Part No. | 80223 | |
| Electrical | ||
| Frequency range (MHz) | Port1 | 1920-2170 |
| Port2 | 1710-1880 | |
| Port3 | 2500-2700 | |
| Port4 | 694-803 | |
| Port5 | 824-960 | |
| Insertion loss (dB) | ≤0.5 | |
| Isolation (dB) | ≥50 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20 °C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relative humidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 7/16 Female | |
| Packing | 1pc /box | |
| Code | Type | DC pass | Weight (kg) | Dimensions (mm) | Connectors |
| 8022330 | Single | DC pass all | ≤4 | 270*195*55 | 7/16 Female |
| 8022331 | Double | DC pass all | ≤8 | 270*195*115 | 7/16 Female |
