Combiner 698-960&1710-1880/1920-2170 MHz

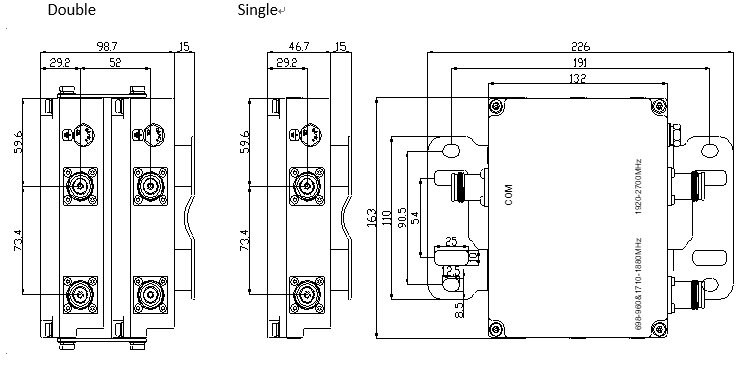

Schematic diagram
Optional model

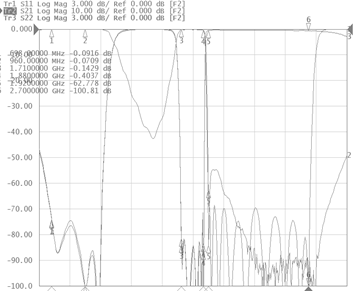

Typical Attenuation Curves
| Part No. | 80598 | |
| Electrical | ||
| Frequency range (MHz) | Port1 | 698-960&1710-1880 |
| Port2 | 1920-2700 | |
| Insertion loss(dB) | ≤0.4 | |
| Isolation(dB) | ≥50 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W(avg.) | |
| DC/AISG | By-pass(max.3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20°C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relativehumidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 4.3-10 Female | |
| Packing | 1pc /box | |

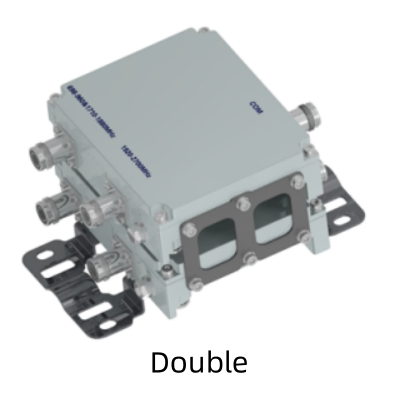

Optional model
| Code | Type | DC pass | Weight(kg) | Dimensions (mm) | Connectors |
| 8059870 | Single | DC pass all | ≤1.7 | 163*132*46.7 | 4.3-10 Female |
| 8059860 | Double | DC pass all | ≤3.5 | 163*132*98.7 | 4.3-10 Female |

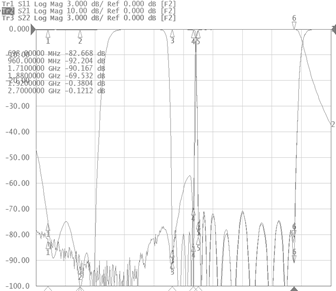

Typical Attenuation Curves
