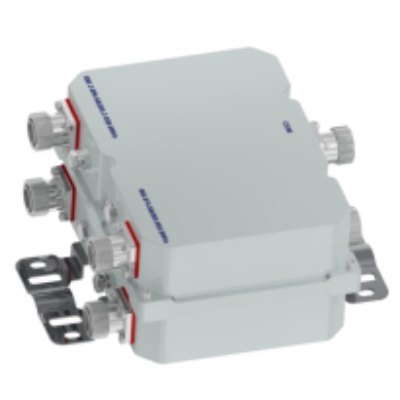

Same Band Combiner 885-890&930-935 910-915&955-960MHz .80566.2
| Part No. | 80566 | |
| Electrical | ||
| Frequency range (MHz) | Port1 | 885-890&930-935 |
| Port2 | 910-915&955-960 | |
| Insertion loss (dB) | ≤0.6 | |
| Isolation (dB) | ≥30 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20 °C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relative humidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 7/16 Female | |
| Packing | 1pc /box | |
| Code | Type | DC pass | Weight(kg) | Dimensions (mm) | Connectors |
| 8056660 | Single | DC pass all | ≤3 | 238*175*66 | 7/16 Female |
| 8056651 | Double | DC pass all | ≤6 | 238*175*112 | 7/16 Female |

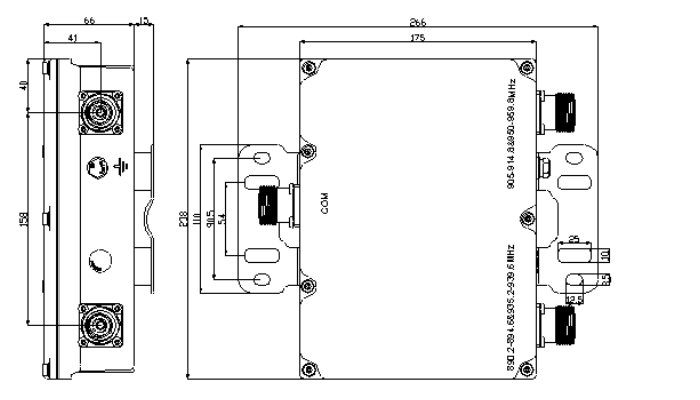

Single

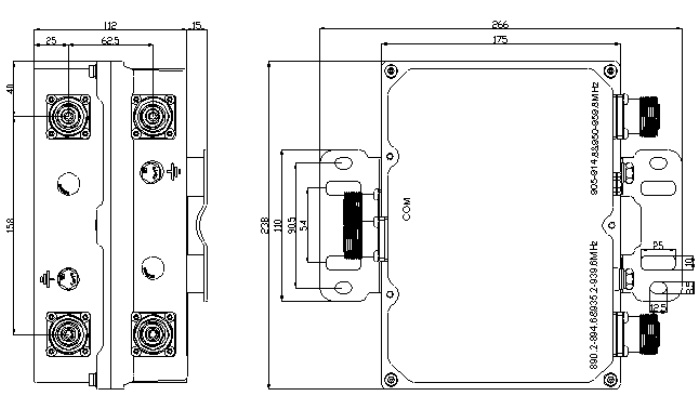

Double
