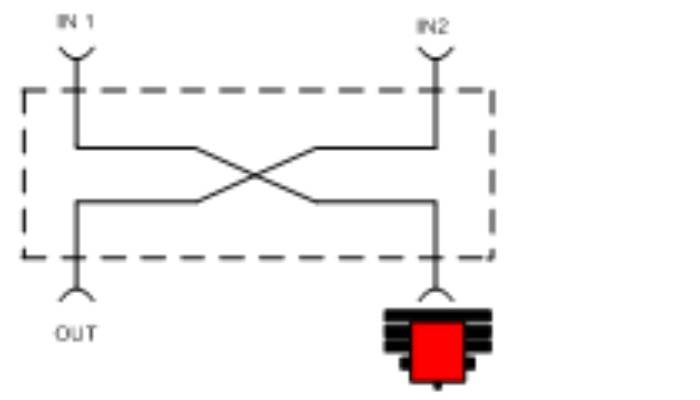

Same-band Combiner 200W 698-2700MHz .8024471
| Part No. | 8024471 |
| Electrical | |
| Frequency (MHz) | 698-2700 |
| Insertion loss | ≤3.5dB |
| VSWR | ≤1.25 |
| Isolation | ≤25dB |
| Intermodulation | ≤160dBc (3rd order; with 2×20W) |
| Impedance | 50 Ω |
| Input power | ≤200W (avg.) |
| Environmental | |
| Operating temperature | -40 °C to +65 °C |
| Storage temperature | -40 °C to +85 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor (IP67) |
| Mechanical | |
| Connectors | N-Female |
| Weight | 4.5kg |

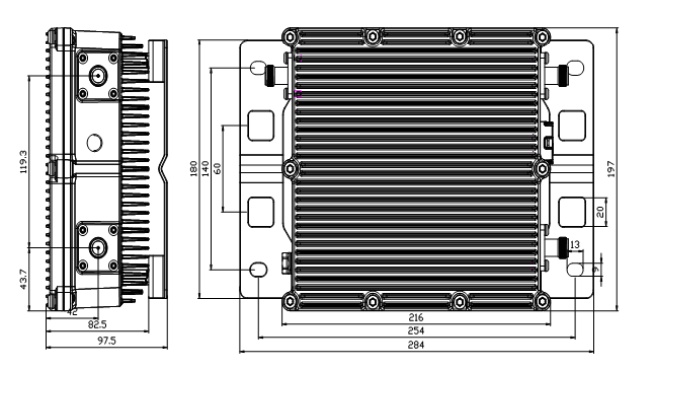

| Dimensions | 216*197*97.5mm |
