Combiner 1695-1780&2110-2200/1850-2000 MHz 80550

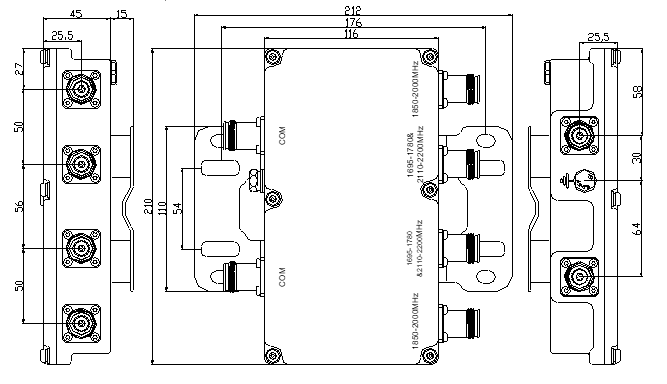

Schematic diagram

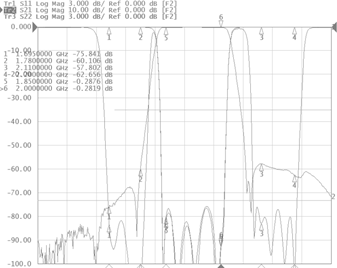

Typical Attenuation Curves
| Part No. | 80550 | |
| Electrical | ||
| Frequency range (MHz) | Port1→ Port3 Port4→ Port6 |
1695-1780&2110-2200 |
| Port2→ Port3 Port5→ Port6 |
1850-2000 | |
| Insertion loss (dB) | ≤0.4 | |
| Isolation (dB) | ≥50 | |
| Return loss/VSWR | ≤-20dB/1.22 | |
| Intermodulation (dBc) | ≤-150/155/160 (with 2×20W) | |
| Impedance (Ω) | 50 Ω | |
| Input power (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Environmental | ||
| Operation temperature | -20 °C to +65 °C | |
| Storage temperature | -40 °C to +85 °C | |
| Relative humidity | 5% - 95% | |
| Application | Indoor or outdoor (IP67) | |
| Mechanical | ||
| Connectors | 4.3-10 Female | |
| Packing | 1pc /box | |

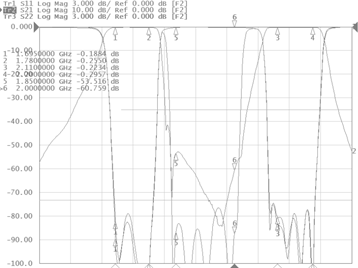

Typical Attenuation Curves
