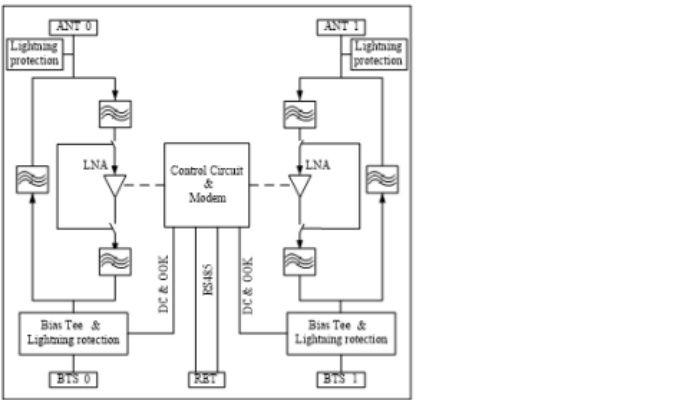

TMA 700M/850M/900M/1800M-2BTS-2ANT
| Part No. | 860045 | 8620453 | 862035 | 8600360 |
| Electrical | ||||
| RX | 777-787 | 824-839 | 880-915 | 1710-1785 |
| Gain | 12dB±1dB | |||
| Gian Fluctuation | 0.6dB typ; 1.5dB max | |||
| Noise Figure @25℃ | 1.8dB typ. | |||
| Return loss in by-pass mode | 15dB min | |||
| Return loss in normal mode | 18dB min | |||
| Max Input Power | <12dBm | |||
| Output 1–dB compression pint | 12dBm min | |||
| Insert loss in by-pass mode @25℃ | 2.8dB typ., | |||
| TX | 746-756 | 869-884 | 925-960 | 1805-1880 |
| Insert loss @25℃ | 0.60dB typ.,0.75dB max | |||
| Insert loss @(–40~+65 °C) | 0.80dB typ.,0.90dB max | |||
| Return loss | 18dB min | |||
| Peak Power | 1.6KW | |||
| Intermodulation products in RX band | <-107dBm (2 Tx carriers at +43 dBm) (Power up) @BTS IM3 | |||
| Environmental | ||||
| Operating temperature | –40~ +65 °C | |||
| Relative humidity | 5 to 95% | |||
| IP rating | Indoor or outdoor (IP67) | |||
| MTBF | > 1,000,000 hours (per TMA) | |||
| EMC | According to ETS 300 342-3 | |||
| DC and Alarm Characteristics | AISG mode | |||
| Mechanical | ||||
| Material | Aluminium housing | |||
| Connectors | 4 pcs Din-female(long neck) | |||
| Mounting | Wall mounting: with 4 screws (max. 8 mm diameter), Mast mounting: with additional clamp set |
|||
| Weight | 5.6kg | |||

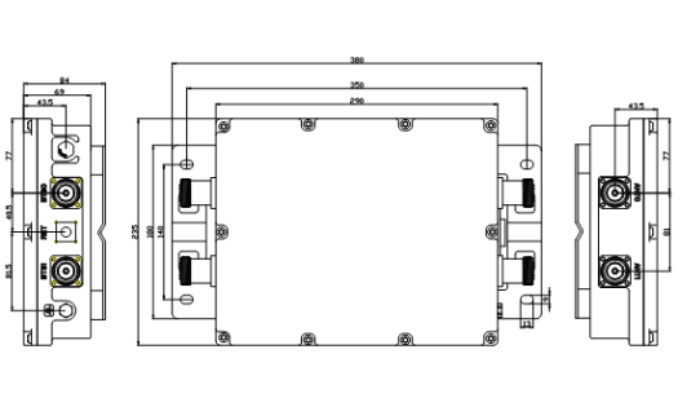

| Dimensions (w*h*d) | 235x290x76mm(without connectors, without mounting brackets) | |||
