DDTMA-1800&2100-AISG-2BTS2ANT
| Type No. | 8620551 | |
| Electrical | ||
| RX | ||
| Frequency Range | 75 MHz (1710 MHz to 1785 MHz) | 60MHz (1920 MHz to1980 MHz) |
| Gain | 12dB±1dB | 12dB±1dB |
| Gain Fluctuation @25℃ | 1.5dB max | 1.5dB max |
| Noise Figure @25℃ | 1.6dB typ 1.85dB max | 1.55dB typ 1.75dB max |
| Return loss in normal mode | 18dB min | 18dB min |
| Max Input Power | <12dBm | <12dBm |
| Output 1dB compression | ＞12dBm | ＞12dBm |
| Insert loss in by-pass mode @25℃ | 2.5dB typ., 2.8dB max | 2.4dB typ., 2.7dB max |
| TX | ||
| Frequency Range | 75 MHz (1805 MHz to 1880 MHz) | 60 MHz (2110 MHz to 2170 MHz) |
| Insert loss @25℃ | 0.50dB typ.,0.60dB max | 0.30dB typ.,0.50dB max |
| Average Power | 180W | 180W |
| Peak Power | 1.6KW | 1.6KW |
| Intermodulation products in RX band (2 Tx carriers at +43 dBm) |
≤-160dBc（Power up）@ANT IM3 | ≤-160dBc（Power up）@ ANT IM7 |
| ≤-150dBc（Power up）@BTS IM3 | ≤-150dBc（Power up）@BTS IM7 | |
| Environmental | ||
| Operating temperature range | –40~ +65 °C | |
| IP rating | IP67 |
|
| MTBF | > 1,000,000 hours (per TMA) | |
| EMC | According to ETS 300 342-3 | |
| DC and Alarm Characteristics | AISG Mode | |
| DC supply | 10– 30 V | |
| Mechanical | ||
| RF Connectors |
DIN 7-16（F）* 4 long neck 8-pin female, IEC 60130-9 (Pin 3: RS485B, pin 5: RS485A, pin1&pin 6: 10 – 30V DC, pin 7: DC return, other pins: not connected) |
|
| Mounting | Wall mounting: with 4 screws (max. 8 mm diameter) ,Mast mounting: with additional clamp set | |
| Weight | Approach 11kg | |

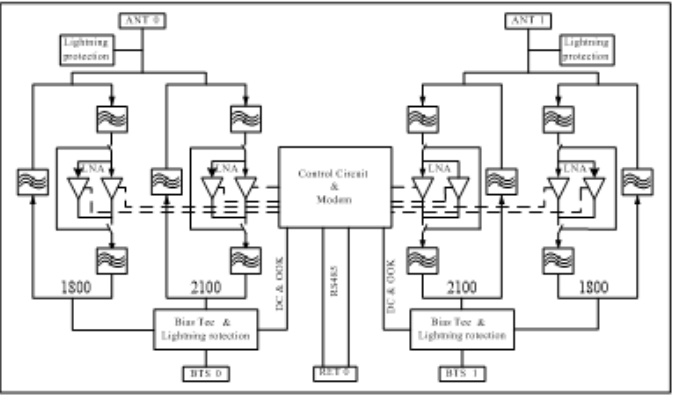

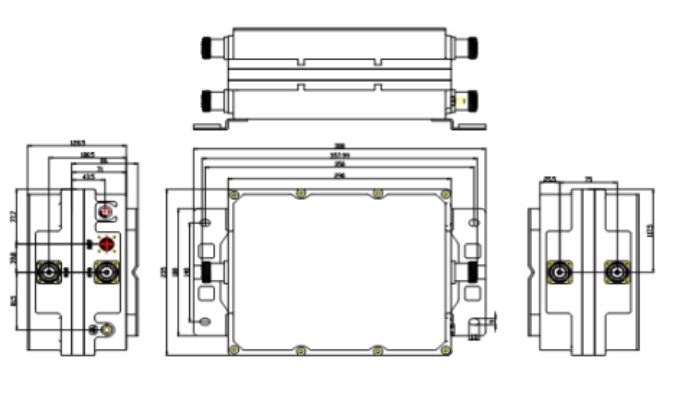

| Dimensions (w*h*d) | 225x290x139mm(without connectors, without mounting brackets) | |

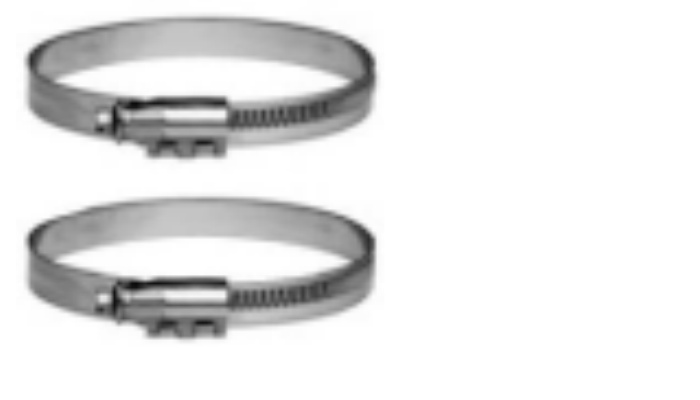

Clamp set suitable for mast of diameter 64-114mm
Type No.: 00186007210
