TMA 2100M/2600M-2BTS-2ANT

Features
•Double units for easy use with XPol antennas
•By-pass mode to ensure cell operation in case of DC power down
•Built-in lightning protection

We supply OEM&ODM service

Return within 30 days!

One year warranty and life-long service!

Send request

Product details

Product tags

Part No.	8620261	8620252
Electrical
RX	1920-1980	2500-2570
Gain@25℃	12dB±1dB
Gain@(–40~+65 °C)	12dB±1.2dB
Gain Fluctuation @25℃	±0.4dB typ., ±0.6dB max
Noise Figure @25℃	1.5dB typ., 1.7dB max
Return loss in by-pass mode	15dB min
Return loss in normal mode @25℃	18dB min
Max Input Power	<12dBm
Insert loss in by-pass mode @25℃	2.4dB typ., 2.6dB max
Impedance	50Ω
Output IP3	25dBm min
TX	2110-2170	2620-2690
Insert loss @25℃	0.30dB typ.,0.40dB max
Return loss	18dB min
Group Delay	45 ns max over any 5MHz in Rx band
Average Power	180W
Peak Power	1.6KW
Intermodulation products in RX band@BTS	<-107dBm (2 Tx carriers at +43 dBm) （power up）
Environmental
Operating temperature	–40~ +65 °C
Relative humidity	5 to 95%
IP rating	Indoor or outdoor (IP67)
MTBF	> 1,000,000 hours (per TMA)
DC supply	10– 30 V
Alarm management	AISG mode
Mechanical
Material	Aluminium housing
Connectors	4 pcs Din-female(long neck)
Weight	3.5kg

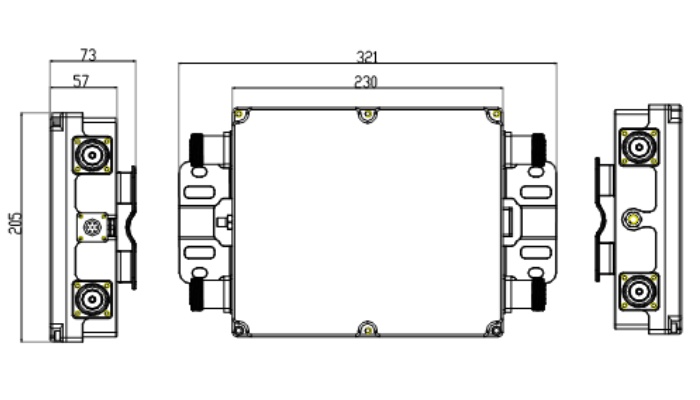

Dimensions (whd)	230x205x57mm(without connectors, without mounting brackets)
