DDTMA-1800&2100&2600-AISG-2BTS2ANT

Features
•Double units for easy use with XPol antennas
• Support AISG 2.0
• Built-in lightning protection

We supply OEM&ODM service

Return within 30 days!

One year warranty and life-long service!

Send request

Product details

Product tags

Part No.	8620851
Electrical
Downlink (TX) Path
Frequency Band	1805 - 1880 MHz	2110 - 2170 MHz	2620-2690 MHz
Insertion Loss	0.6 dB max	0.6 dB max	0.6 dB max
Return Loss(min)	18dB	18dB	18dB
Intermod, 2x43 dBm TX@ BTS(active)	-117 dBm in RX band, ANT port	-117 dBm in RX band, ANT port	-117 dBm in RX band, ANT port
Uplink (RX) Path
Frequency Band	1710 - 1785 MHz	1920 - 1980 MHz	2500 - 2570 MHz
Gain(normal temp.)	12dB±1dB	12dB±1dB	12dB±1dB
Gain Fluctuation	±0.5dB typ., ±1.0dB max	±0.5dB typ., ±1.0dB max	±0.5dB typ., ±1.0dB max
Noise Figure (normal temp.)	2.0 dB@max	2.0 dB*@max	2.0 dB*@max
Insertion Loss in Bypass mode	3.0 dB*	3.0 dB*	3.2 dB*
Return loss in by-pass mode	>14dB	>14dB	>14dB
Return loss in normal mode (min)	18dB	18dB	18dB
Output P1 dB(min)	12 dBm	12dBm	12 dBm
Bypass(LPF) Path
Frequency range	800-960 MHz
Insertion loss	≤0.3dB
Rejection	≥80dB(1710-2690MHz) ≥50dB(2690-3GHz)
Power Supply and Alarm
DC	10-30 V DC
Alarm	3GPP/AISG 2.0

Operating Temperature	-40 to +65°C
Ingress Protection	IP67
Lightning protection	3KA 10/350us

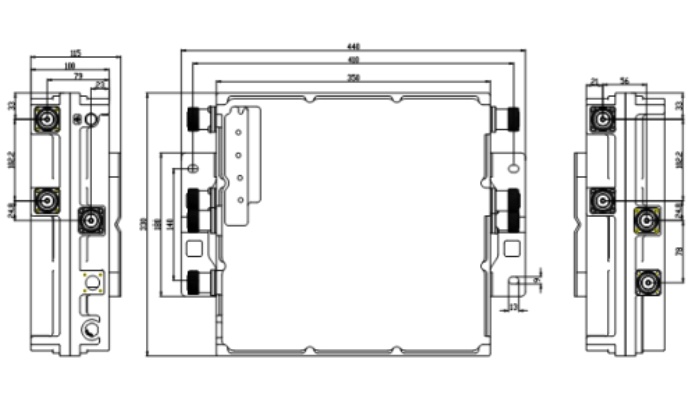

Mechanical
Dimensions (whd)	330350100mm
RF Connectors	7/16 DIN female
Weight	12kg
