Smart Bias Tee 617-2700MHz
| Type No. | 9508680050 | 9508680051 | 9508680052 | 9508680053 |
| Port 1 | 7-16 male | 7-16 male | 7-16 female | 7-16 female |
| Port 2 | 7-16 female | 7-16 female | 7-16 male | 7-16 male |
| AISG Connector | female | male | female | male |
| Frequency range | 617– 2700 MHz | |||
| Insertion loss | / | |||
| Port 1 - Port 2 | < 0.1 dB (617– 2700 MHz) | |||
| Isolation for DC and RCU signals | ||||
| Port 1 - Port 2 | > 60 dB | |||
| Port 1 -Port DC/RCU | > 60 dB | |||
| VSWR | < 1.2(617 – 2700 MHz) | |||
| Impedance | 50 Ω | |||
| Port 1 or port 2 | ≥200W（AVG）;≥2000W（PEAK）(617 – 2700 MHz) | |||
| Port DC/RCU | < 2.5 A / +10 … +30 VDC | |||
| Power consumption | Typically 0.6 W | |||
| Lightning protection | 3 kA, 10/350 us pulse | |||
| Inter-modulation products | < –155dBc (3rd order; with 2 x 20 W) | |||
| Temperature range | –40 ... +65 °C | |||
| Modem carrier frequency | 2.176 MHz | |||
| Application | Indoor or outdoor (IP67) | |||
| Weight | 0.65 kg | |||

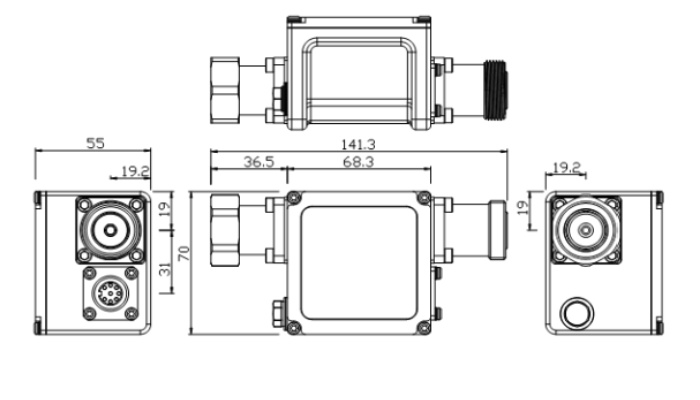

| Dimensions (w x h x d) | 141.3×70×55mm | |||
