Smart Bias Tee 698-2700MHz
| Type No. | 9508680060 | 9508680061 | 9508680062 | 9508680063 |
| Port 1(ANT) | N male | N male | N female | N female |
| Port 2(Feeder) | N female | N female | N male | N male |
| AISG Connector | female | male | female | male |
| Frequency range | 617– 2700 MHz | |||
| Insertion loss | / | |||
| Port 1 - Port 2 | < 0.1 dB (617– 2700 MHz) | |||
| Isolation for DC and RCU signals | / | |||
| Port 1 - Port 2 | > 60 dB | |||
| Port 1 -Port DC/RCU | > 60 dB | |||
| VSWR | < 1.20(617 – 2700 MHz) | |||
| Impedance | 50 Ω | |||
| Port 1 or port 2 | ≥200W（AVG）;≥2000W（PEAK）(617 – 2700 MHz) | |||
| Port DC/RCU | < 2.5 A / +10 … +30 VDC | |||
| Power consumption | Typically 0.6 W | |||
| Lightning protection | 3 kA, 10/350 us pulse | |||
| Inter-modulation products | < –150dBc (3rd order; with 2 x 20 W) | |||
| Temperature range | –40 ... +65 °C | |||
| Modem carrier frequency | 2.176 MHz | |||
| Application | Indoor or outdoor (IP67) | |||
| Weight | 0.65 kg | |||

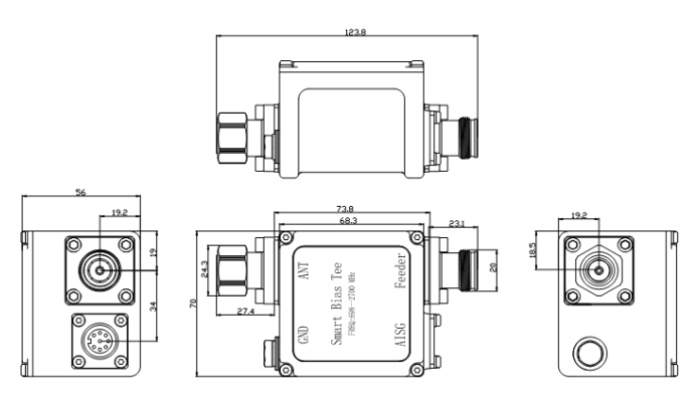

| Dimensions (w x h x d) | 123.8×70×55mm | |||
