DC-Stop, 555-3800MHz .2
| PartNo. | 8315055 |
| Electrical | |
| Frequency range(MHz) | 555-3800 |
| Insertion loss | ≤0.2dB |
| Return loss/VSWR | ≤-20dB/1.22 |
| Intermodulation | ≤160dBc (3rd order with 2×20W) |
| Input power | 500 W (avg.) |
| Impedance | 50 Ω |
| Environmental | |
| Operatingtemperaturerange | -30 °C to +75 °C |
| Storage temperature | -40 °C to +85 °C |
| Relative humidity | 5% - 95% |
| Application | Indoor or outdoor(IP67) |
| Mechanical | |

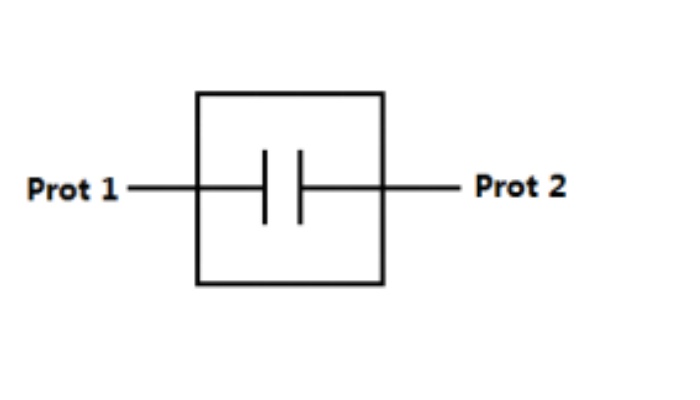

| Connectors | Port 1 4.3-Male Port 2 4.3-Female |
| Weight | 0.25Kg |

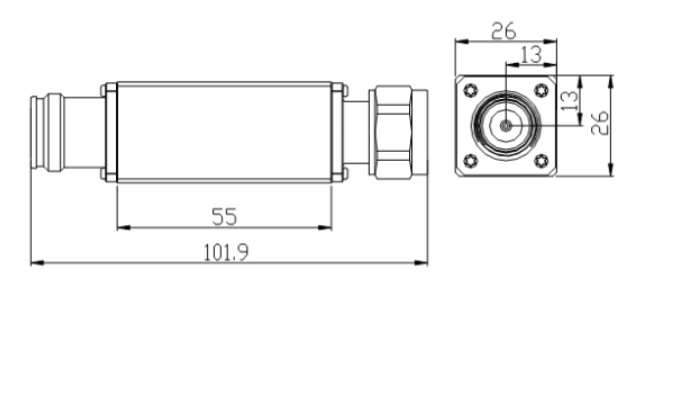

| Dimensions | 100*26*26 mm |
