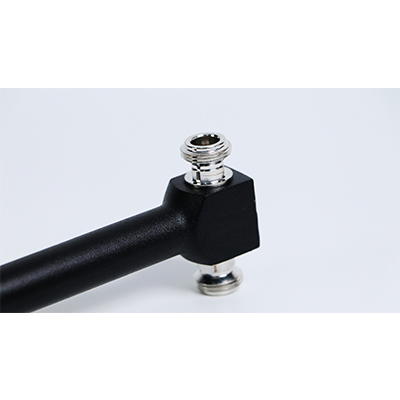

Split:2；Ripple (dB)：≤0.3；VSWR ：≤ 1.25 Ordinary (N-F) power divide
IGF-0837N2A
| Electrical Properties | |
| Frequency range (MHz) | 800-3700 |
| Split | 2 |
| Insertion Loss(Including Distribution Loss) (dB) | ≤3.3 |
| Ripple (dB) | ≤0.3 |
| VSWR | ≤1.25 |
| PIM3 (dBc) | ≤-140 (2×43dBm) |
| PIM5 (dBc) | ≤-155 (2×43dBm) |
| Impedance (Ω) | 50 |
| Connector | N-F |
| Power(MAX) (W) | Average 300 peak 1000 |
| Mechanical Properties | |
| Applied Environment | Indoor IP42 |
| Temperature (℃) | -40～+55 |
| Dimension (mm) | 214*25*52(±1.0) mm |
| Packing size (mm) | 220*70*30mm |
| Weight (g) | （0.15±0.02） |
