Split:4；Ripple (dB)：≤0.48；VSWR：≤1.25 Ordinary (N-F) power divide

Short Description:
Split:4；Ripple (dB)：≤0.48；VSWR：≤1.25
Frequency band：800-3700 MHz
Applicable to various countries and regions.

We supply OEM&ODM service

Return within 30 days!

One year warranty and life-long service!

Send request

Product details

Product tags

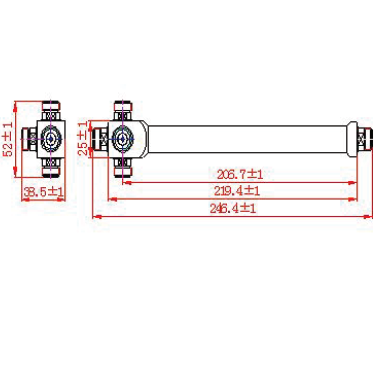

IGF-0837N4A

Electrical Properties
Frequency range (MHz)	800-3700
Split	4
Insertion Loss(Including Distribution Loss) (dB)	≤6.5
Ripple (dB)	≤0.48
VSWR	≤1.25
PIM3 (dBc)	≤-140 (2×43dBm)
PIM5 (dBc)	≤-155 (2×43dBm)
Impedance (Ω)	50
Connector	N-F
Power(MAX) (W)	Average 300 peak 1000
