Split:2；Ripple (dB)：≤0.3；VSWR：≤1.3 Waterproof (DIN-F) power divide
IGF-0837D2A
| Electrical Properties | |
| Frequency range (MHz) | 800-3700 |
| Split | 2 |
| Insertion Loss(Including Distribution Loss) (dB) | ≤3.3 |
| Ripple (dB) | ≤0.3 |
| VSWR | ≤1.3 |
| PIM3 (dBc) | ≤-150 (2×43dBm) |
| PIM5 (dBc) | ≤-160 (2×43dBm) |
| Impedance (Ω) | 50 |
| Connector | DIN-F |
| Power(MAX) (W) | Average 500 peak 1500 |
| Mechanical Properties | |
| Applied Environment | Outdoor IP65 |
| Temperature (℃) | -40～+55 |

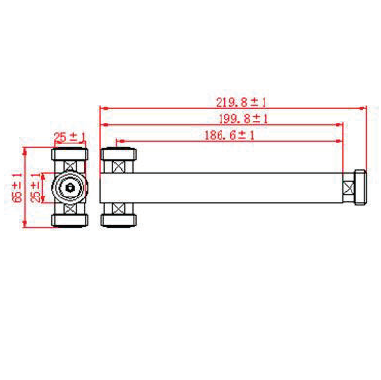

| Dimension (mm) | 199.8*25*25(±1.0) mm |
| Packing size (mm) | 230*80*30mm |
| Weight (g) | （0.43±0.02） |
