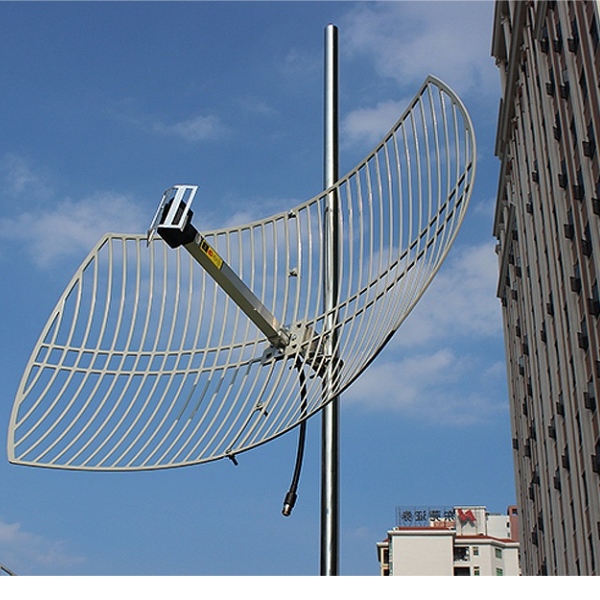

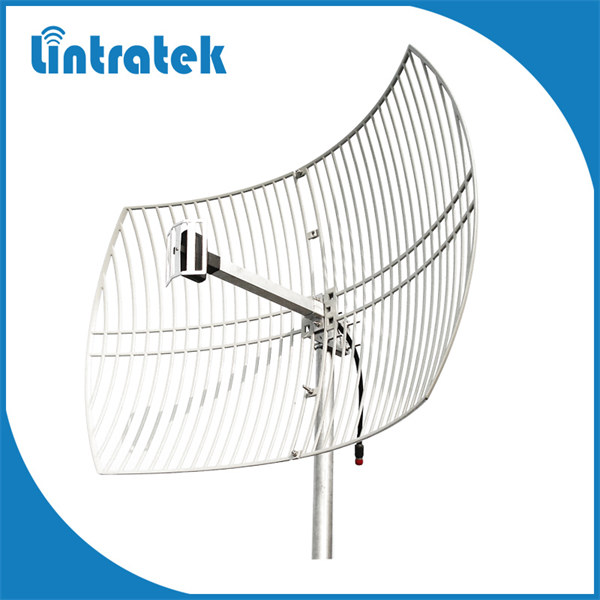

820-960MHz 16DBi Outdoor Gird Antenna

     Multi-applications: such as Building coverage, Villa area, Village in the city, Bridge across the sea, Desert, Ranch, large conference room, Office, Hotels, Bus terminals and train stations, etc.

      100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the good is with any quality issue, we’re happy to offer you a new one!

Product Name	Gird Antennas
Model	OSG-20NK-82/96
Frequency range-MHz	820-960
Bandwidth-MHz	140
Gain-dBi	16
Horizontal Beamwidth-°	16
Vertical Beamwidth-°	16
Front to Back Ratio-dB	≧30
VSWR	≦1.5
Nominal impedance-Ω	50
Polarization	Vertical or horizontal
Maximum power-W	100
Dimensions-mm	600×900
Weight-kg	3.2
Rated Wind Velocity-m/s	60
Connector	N-male/N-female  or User specified
Mounting Mast Diameter-mm	Gain-dBiΦ35-50
