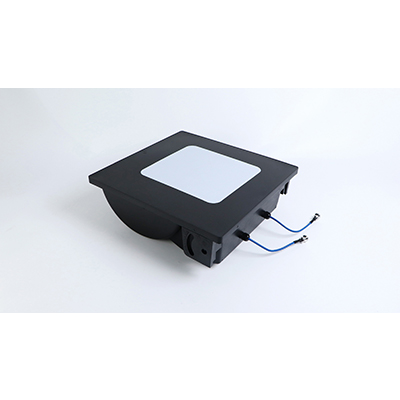

High rise 900-D full frequency two port Vertical large angle Antenna
OSD-0827X12i060N2B
| Electrical Properties | |||||
| Frequency range (MHz) | 885-960 | 1710-1830 | 1885-2025 | 2320-2675 | |
| Gain (dBi) | ≥10 | ≥11.5 | ≥12.5 | ≥12.5 | |
| Horizontal Beam width (3dB)(°) | 20-35 | 20-35 | 20-35 | 20-35 | |
| Vertical Beam Width (3dB)(°) | ≥60 | ||||
| Polarization | ±45° | ||||
| VSWR | ≤1.5 | ||||
| 3dB wave width cross polarization ratio in vertical plane (dB) |
≥10 | ||||
| 3dB wave width cross polarization ratio in vertical plane (dB) |
≥10 | ||||
| Interband isolation (dB) | ≥25 | ||||
| Front to back ratio, ±30° (dB) | ≥23 | ||||
| Max. effective power per port (W) | ≥50 | ||||
| （@2*37dBm）Intermodulation IM3 (dBc) | ≤-107dBm（@900M/1800M) | ||||
| PIMD 2th（@2*37dBm） | ≤-107dBm（@900M) | ||||
| Impedance (Ω) | 50 | ||||
| Mechanical Properties | |
| Size(mm) | ≤455*455*200mm |
| Weight (kg) | 3.85 |
| Joint type | 2×N-Female |
| Radome material | Outdoor PP |
| Operational temperature (℃) | -40～+70 |
| Weight of Mounting Kits（kg） | 0.87 |
| wind speed (m/s) | 55 |
