High building 1800-D broadband Horizontal plane large angle Antenna
OSD-1727X13i060N2B
| Electrical Properties | |||
| Frequency range (MHz) | 1710-1830 | 1885-2025 | 2320-2675 |
| Gain (dBi) | ≥12 | ≥13 | ≥13 |
| Horizontal Beam width (3dB)(°) | 20-35 | 20-35 | 15-35 |
| Vertical Beam Width (3dB)(°) | ≥60 | ||
| Polarization | ±45° | ||
| VSWR | ≤1.5 | ||
| 3dB wave width cross polarization ratio in vertical plane (dB) |
≥10 | ||
| 3dB wave width cross polarization ratio in vertical plane (dB) |
≥10 | ||
| Interband isolation (dB) | ≥25 | ||
| Front to back ratio, ±30° (dB) | ≥23 | ||
| Max. effective power per port (W) | ≥50 | ||
| （@2*37dBm）Intermodulation IM3 (dBc) | ≤-107dBm（@900M/1800M) | ||
| PIMD 2th（@2*37dBm） | / | ||
| Impedance (Ω) | 50 | ||
| Mechanical Properties | |

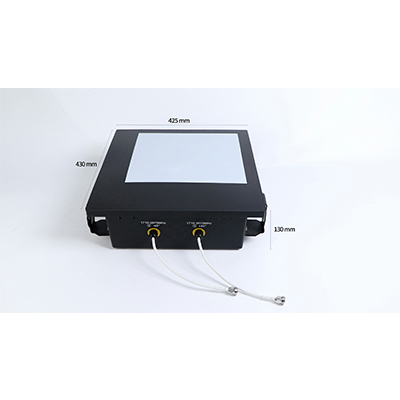

| Size(mm) | 430×427×130 |
| Weight (kg) | 2.52 |
| Joint type | 2×N-Female |
| Radome material | Outdoor PP |
| Operational temperature (℃) | -40～+70 |
| Weight of Mounting Kits（kg） | 0.81 |
| wind speed (m/s) | 55 |
