2G/3.5G broadband 2+4 port Vertical large angle spotlight Antenna
OSD-1736X13i030N6A
| Electrical Properties | ||
| Frequency range (MHz) | 1710-2170 | 3400-3600 |
| Polarization | ±45° | ±45° |
| Gain (dBi) | ≥9.5 | ≥13.5 |
| Horizontal Beam width (°) | 35±10 | 30±10 |
| Vertical Beam Width (°) | 60±10 | 60±10 |
| VSWR | ≤ 1.4 | ≤ 1.4 |
| Front to back ratio （dB） | ≥23 | ≥23 |
| Interband isolation (dB) | ≥25 | ≥25 |
| Cross polarization ratio axial（dB） | ≥15 | ≥15 |
| Cross polarization ratio ± 15°（dB） | ≥8 | ≥8 |
| Intermodulation IM3 (2×37dBm) | ≤ -97 | / |
| Average power capacity（W） | ≥150 | |
| Impedance (Ω) | 50 | |
| Connector type | 6*N-Male/N-Female | |
| Mechanical Properties | |
| Lead Length | ≥200mm |

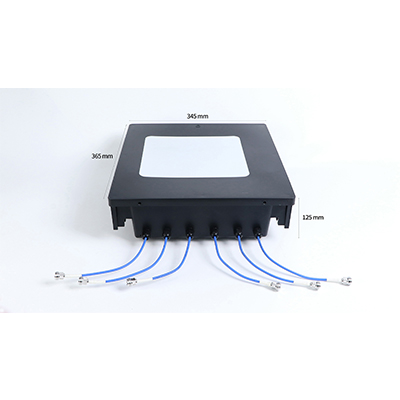

| Size(mm) | ≤365×345×125 |
| Weight (kg) | ≤4 |
| Range of mechanical adjustment (°) | ±45 |
| Thickness of reflector | ≥2.5mm |
| Operational temperature (℃) | -55～+75 |
| wind speed (m/s) | 55 |
